Mounting the Device Using the L-Bracket
View content for :
Product:

Mounting the Device Using the L-Bracket

  1. Use the mounting screws provided with the kit to attach the camera to the bracket. The recommended torque is 6.0 in-lbs.
  2. Refer to the L-bracket mounting options outlined below.

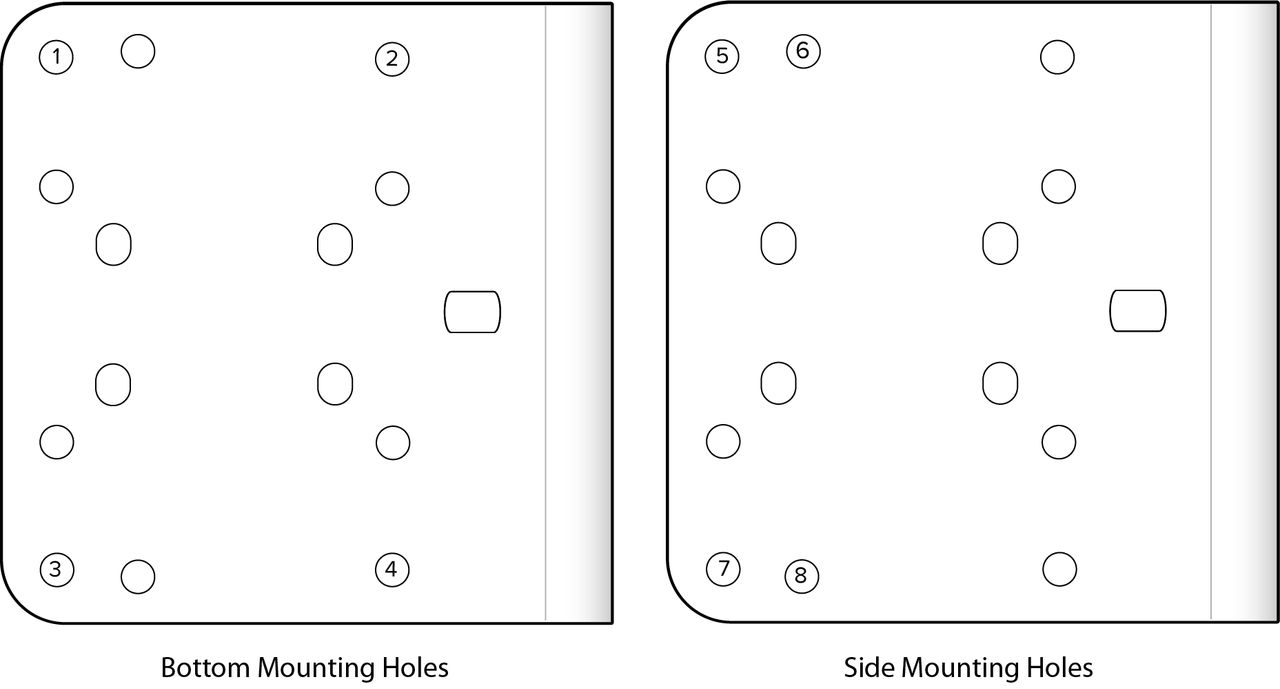

Bottom and Side Mounting Options
1-4
Bottom Surface Mounting Holes for both devices
5-8
Side Mounting Holes for the xS40
Side Mounting Holes for both devices

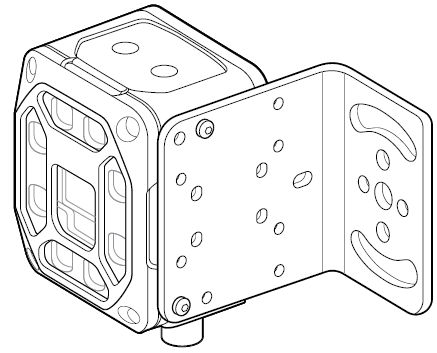

Side Mounting Orientation

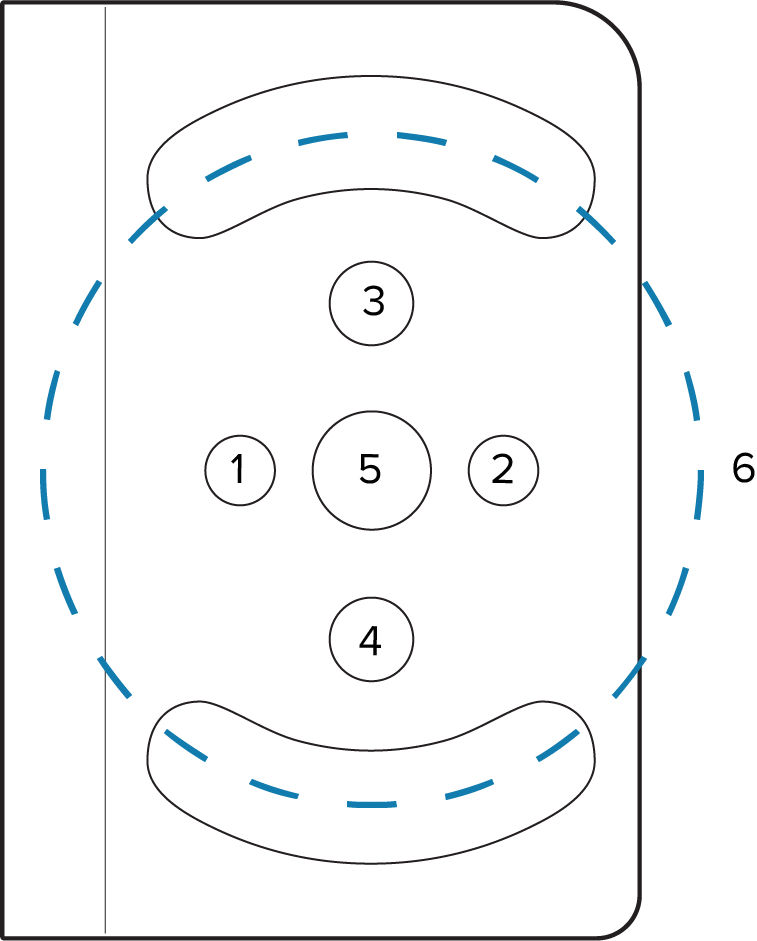

1-2
M5 Clearance
3-4
1/4-20 Clearance
5
M8 Clearance
6
M8 Clearance Slots
Side Mounting Orientation
