FXP20 RFID Reader Integration Guide
FXP20 Interior
FXP20 RFID Reader Integration Guide
FXP20 RFID Reader Integration Guide
Introduction
Solution Overview
RE40 RFID Module Overview
Technical Details
Hardware Overview
External Product Dimensions and Images
Device Features
Adapter Plate
FXP20 Module
FXP20 Module Main Technical Characteristics
FXP20 Full Specs
Power Supply
Package Contents
Software Support
123RFID Desktop
Regulatory Guide
Transferring Data to a Host Computer with 123RFID
Application Development
FXP20 Interior
FXP20 Interior

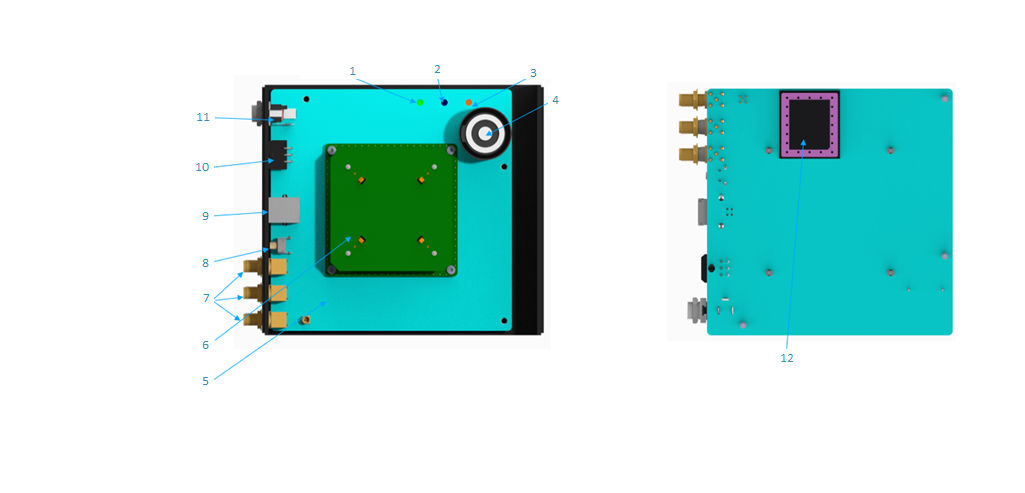

The interior of the reader contains the RE40 module, connectors, antenna, a buzzer and LEDs. This representation is for illustrative purposes only.
Number
Description
1
Green LED
2
Blue LED
3
Orange LED
4
Internal buzzer
5
PCB
6
Internal RFID antenna
7
SMA connector
8
Reset button
9
USB connector
10
GPIO connector
11
Power connector
12
RE40 RFID module
