Create IP Phone Services XML Files

Create IP Phone Services XML Files

Creating a phone directory using the IP Phone Services URL feature requires one XML file containing the main menu and one or more additional XML files containing the directory entries. This section provides a set of sample XML files that create the following speed dial directories:

..\wwwroot\SpeedDials

contains:

SpeedDial_Main.xml

..\wwwroot\SpeedDials\SD

contains:

CUSTOMER_SERVICE.xml

GARDENING.xml

HARDWARE.xml

LUMBER.xml

PLUMBING.xml

SECURITY.xml

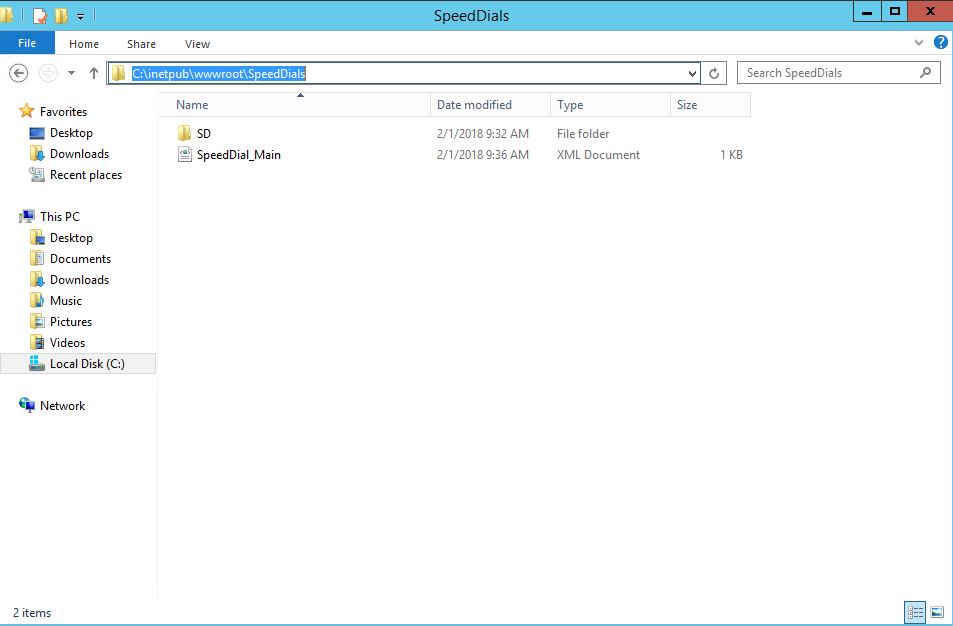

Location of Speed Dial Root Folder — Speed Dial Root Folder

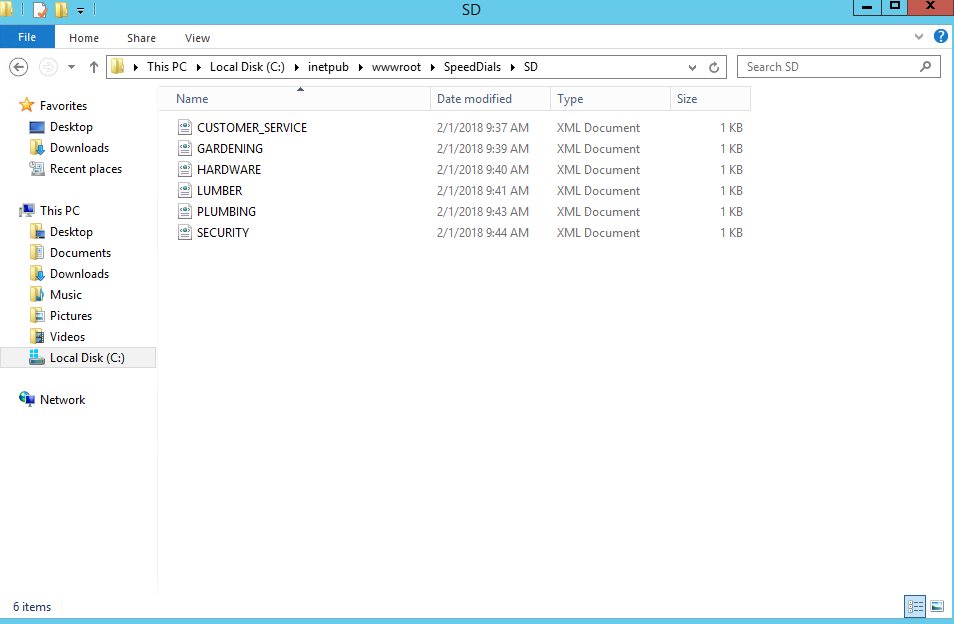

Entries in Speed Dital Directory. — Speed Dial Directory Entries Folder
