Configuring with Zebra Voice GUI

Configure Zebra Voice on the device using the Zebra Voice GUI.
For information on optional configuration settings, see XML Tags.
  1. Touch
    Settings
    .
  2. Enter the settings password. The default password is:
    zamboni
    .
  3. Touch
    Connection Parameters
    .
  4. Select a PBX configuration. The default configuration is:
    PBX#1 Configuration
    .
    For information on configuring additional PBX types, see Configuring Multiple PBX Types.
  5. Touch the
    PBX Type
     field and select Basic CME or Premium CME.
  6. Enter
    SIP ID
     (Basic CME only).
  7. Enter the
    MAC Address
    . See Device Identification for more information on MAC addresses.

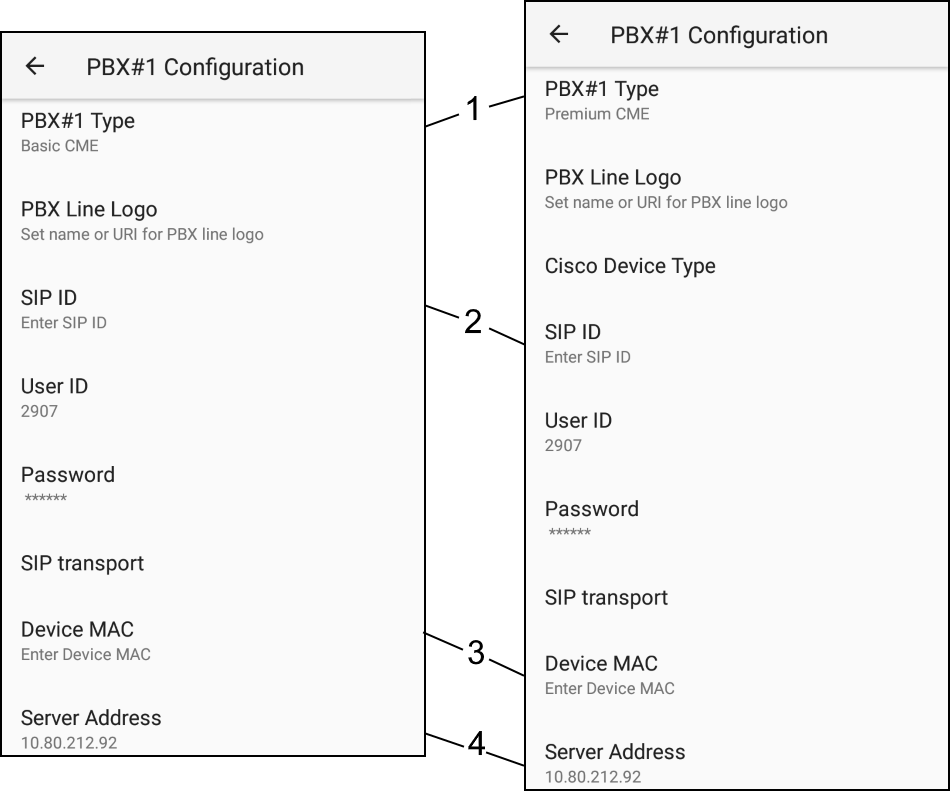

  8. Enter the PBX
    Server Address
    .
    Number
    Item
    1
    PBX Type
    2
    SIP ID
    3
    Device MAC
    4
    Server Address
  9. Touch the back button three times to return to the Zebra Voice home screen.
A confirmation that the configuration has been saved to
WFConnect.xml
 displays.
