Printing a Test Label and Making Adjustments
View content for :
Product:

Printing a Test Label and Making Adjustments

After you have loaded media, loaded ribbon (if using Thermal Transfer mode), installed the printer driver, and connected your printer to your computer, use the directions in this section to print a test label. Printing this label allows you to see if your connection is working and if you need to adjust any of the printer settings.
  1. Turn off (O) the printer.
  2. Press and hold
    CANCEL
     while turning on (I) the printer. Hold
    CANCEL
     until the first control panel light turns off.
    The printer prints a printer configuration label and then a network configuration label as shown in these examples.

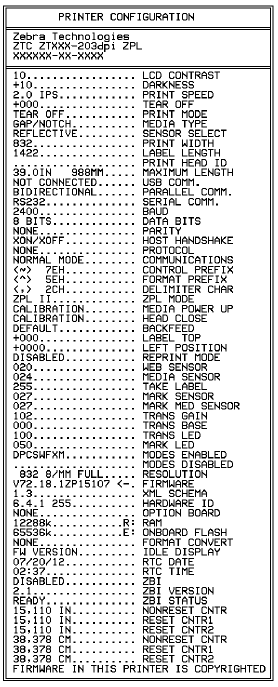

    Sample Printer Configuration Label
    Sample Network Configuration Label
  3. Did the label print, and was it of acceptable print quality?
    If...
    Then...
    The label printed and the print quality is acceptable
    Your printer is ready for printing. See Installing Label Design Software.
    The label did not print
    1. Make sure that you selected the correct printer driver.
       Try printing the label again.
    2. If the label still did not print, check the connections between the printer and your computer or the printer and your network.
    3. If necessary, modify the printer's settings to make them match your computer's or network's settings. See Network Settings.
    The label prints, but with poor quality or other issues
    See Printing or Print Quality Issues for troubleshooting instructions.
