Restoring the connectivity and management features typically disabled by EU RED parameters requires an update to the printer’s security features. The following procedure details the steps for these changes.
This procedure applies only to devices in the EMEA region.
This procedure requires a physical connection between the printer and the mobile device via a USB cable. For USB pairing instructions, go to USB Pairing.
Once you have restored your printer's connectivity and management features, a physical USB connection to your mobile device is no longer required. For future connections, you can pair via Print Touch (recommended) or Bluetooth on your mobile device. For more information, go to Print Touch or Bluetooth Pairing Through Your Mobile Device's Settings Menu, respectively.
Verify that your mobile device is paired to the printer via a USB cable.

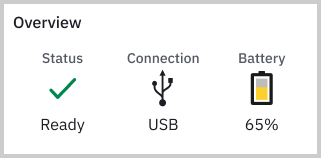

To confirm the connection, examine the Printer Dashboard; ensure Status reads Ready and Connection reads USB. If it does not, go to USB Pairing for pairing instructions.
Tap

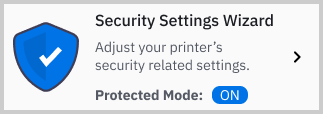

Security Settings Wizard
.
By default, Protect Mode is on. If the mode is off, the initial configuration is complete. To change your printer's security settings, go to Changing Your Printer's Security Settings.
Read the Protected Mode prompt, and then tap
Adjust Settings
.
Review the information on the screen, and then tap
Begin Security Settings Wizard
.
You can also choose to
Learn More About EU RED Regulations
.
The Protected Mode Settings screen displays.

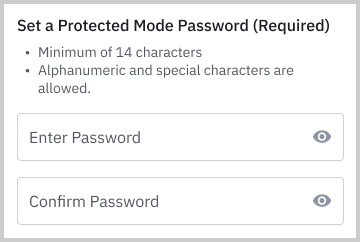

Create a
Protected Mode
password.
Passwords must be a minimum of 14 characters and may include alphanumeric or special characters.

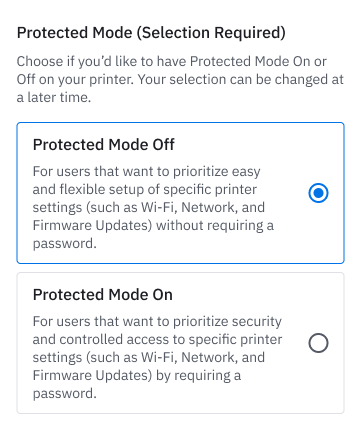

Select
Protected Mode Off
, and then tap
Next
.
This configuration can be modified later if needed.
The Additional Security Settings screen displays.
Change any additional security settings as needed. By default, the settings are disabled.

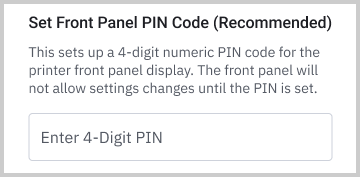

If your printer has a front panel, you will see an option to set a
Front Panel PIN Code
. We recommend creating one.
Additional security settings include:
Set a Front Label Panel PIN Code (This feature is hidden on models without a front panel.)
Allow Firmware Updates
Enable TCP/IP Raw Ports
Enable USB Mirror
Enable WLAN
Enable FTP
Enable SNMP v1/v2 (Insecure)
Enable ZBI
Enable LPD
Enable Access to Printer Web Pages
Enable Webpages Password

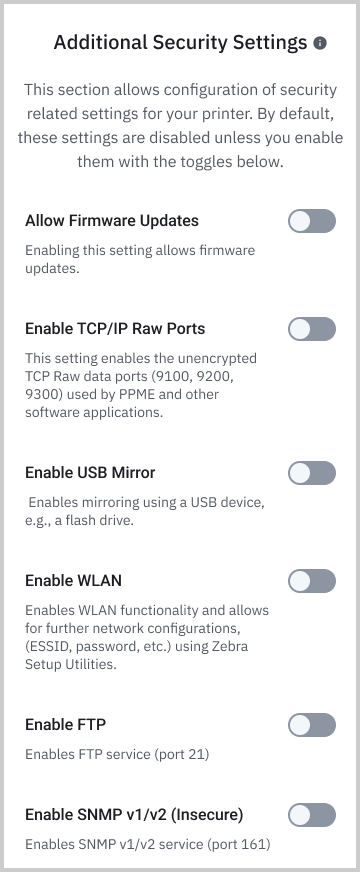

Additional Security Settings

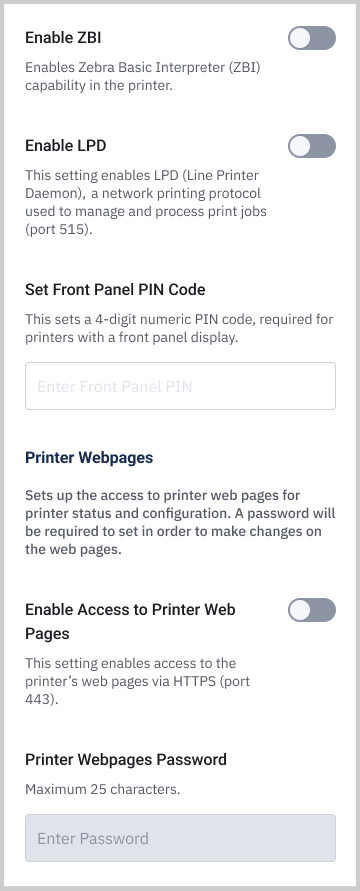

Additional Security Settings (Continued)
Tap
Next
to proceed.
Review your security settings and tap
Apply Settings
to proceed.
If you wish, you may also check
Save settings to file
.
Your file is saved to your mobile device.
Your settings are applied to the printer, and you are returned to the Printer Dashboard screen, where Printer Mode is now set to Off.
