Enabling Power to the RS-232 Connector

Before using the Expansion Module RS-232 connector, you must enable power to the port.

You can access the BIOS settings in two ways. Connect a physical keyboard to the device or tap the screen when the Zebra logo displays.

Connect the ET6x keyboard or any standard USB keyboard to the device (optional).

Reboot the device.

When the Zebra logo displays, tap the Zebra logo on the screen or repeatedly press the

F12

on the keyboard until a chime sounds.

The

Please select boot device

menu displays.

Select

Enter Setup

.

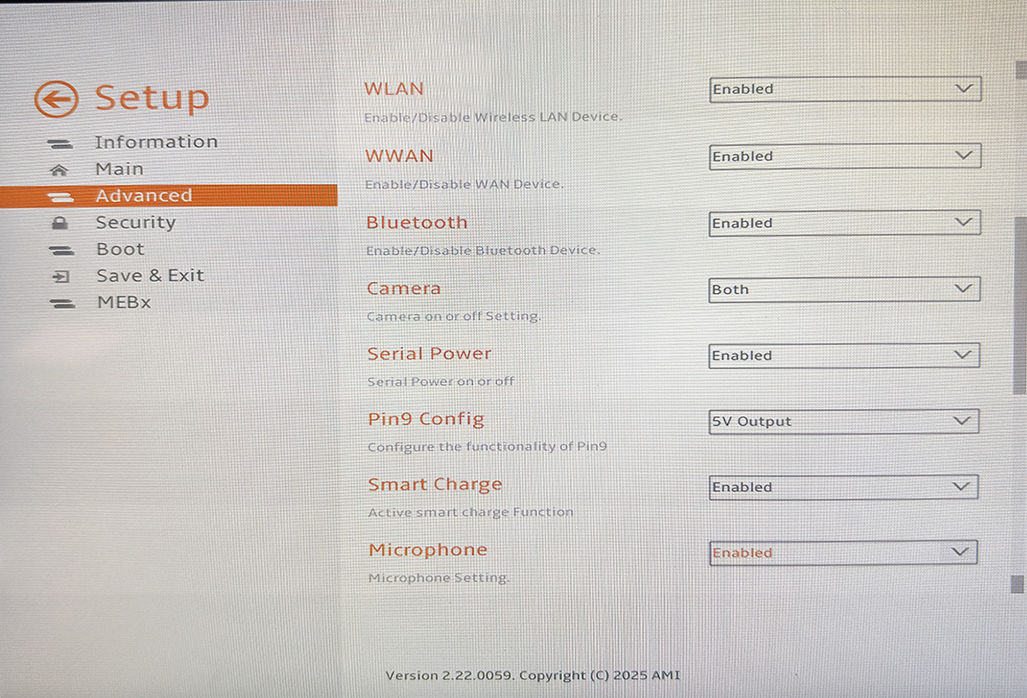

The BIOS screen displays.

Select

Advanced

.

In the

Serial Power

drop-down, select

Enable

.

In the

Pin9 Config

drop-down, select

5V Output

.

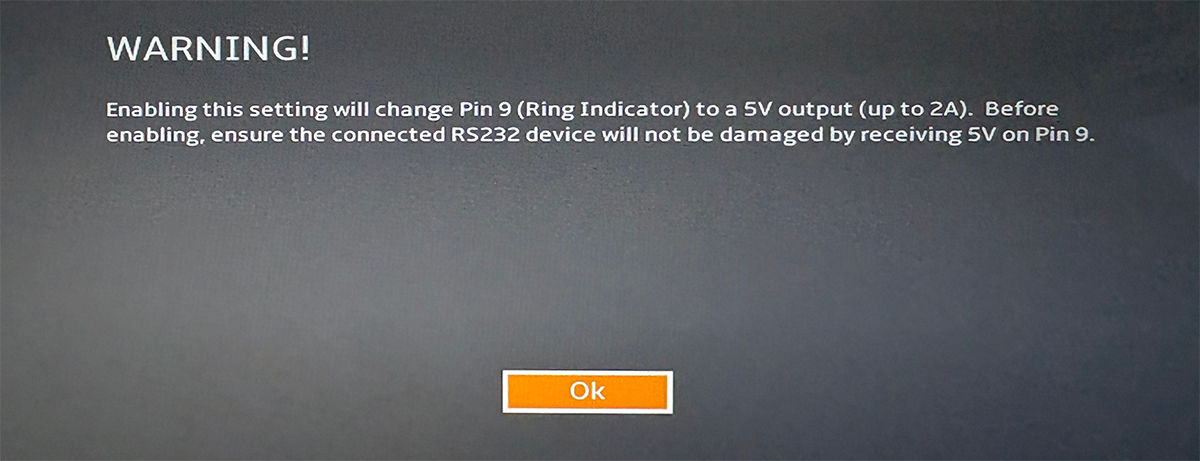

A warning message displays.

Press Enter.

Select

Save & Exit

.

Select

OK

to save the changes and exit the BIOS setup.

The device reboots.
