ET6xW Enterprise Rugged Tablet

Creating an Installation USB Flash Drive Greater than 32GB

Before you begin, download the software for your device by visiting Zebra Support and Downloads at zebra.com/us/en/support-downloads/tablets/et60w-et65w.html.

Make sure the entire file downloads completely. Partial downloads may corrupt the device.

Insert a USB flash drive that is larger than 32GB into a host computer.

Select Start (icon) >

All apps

.

Scroll down and select

Windows Tools

.

Right-click on

Command Prompt

and select

Run as administrator

.

Touch

Yes

.

The

Administrator: Command Prompt

window displays.

Type:

diskpart

, then press the

Enter

key.

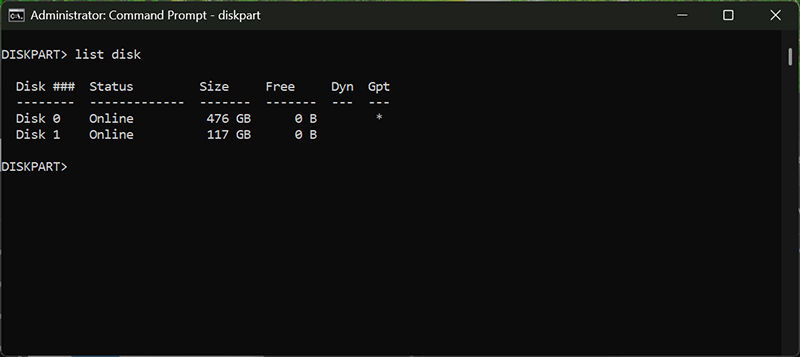

Type:

list disk

, then press the

Enter

key.

A list of displays.

Type:

select disk <disk number>

, where

is the USB drive in the list. For example

select disk 1

.

Press the

Enter

key.

Type:

clean

, then press the

Enter

key.

This erases all partitions on the USB drive.

Type:

create partition primary size=30000

, then press the

Enter

key.

Type:

format fs=fat32 quick label=BOOTME

, then press the

Enter

key.

Type:

assign

, then press the

Enter

key.

Type:

active

, then press the

Enter

key.

Type:

exit

, then press the

Enter

key.

Using

Windows Explorer

, extract the software files you downloaded into a folder.

Copy only the contents of the extracted parent folder to the root of the formatted USB flash drive.

Ensure all the files are copied successfully.

Safely unmount the USB flash drive.

Using

Windows Explorer

, extract the software files you downloaded into a folder.

Copy all the contents of the folder to the formatted USB flash drive.
