Pairing a Bluetooth Scanner
A wireless Bluetooth scanner can be connected to the device.
Download the Zebra Scan-To-Connect software utility. Go to:
zebra.com/us/en/support-downloads/software/scanner-software/cordless-scantoconnect.html
.
Ensure that the Bluetooth scanner is fully charged.

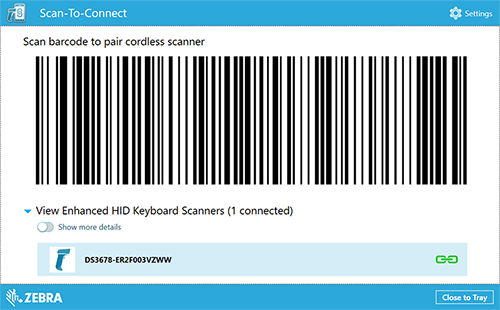

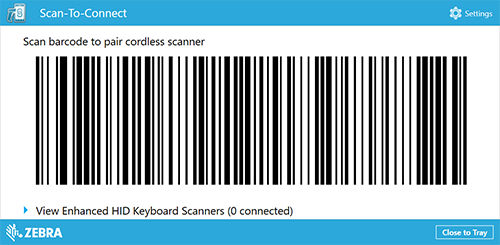

Launch the
Scan-To-Connect
application.
Point the scanner at the display and press the Scan button.
The scanner beeps indicating that the scanner is connected to the device.
