Changing Printer Settings through the Windows Driver
From the Windows Start Menu, go to
Printers & Scanners
.
Click your printer in the list of available printers, and then click
Manage
.
Click
Printing Preferences
.

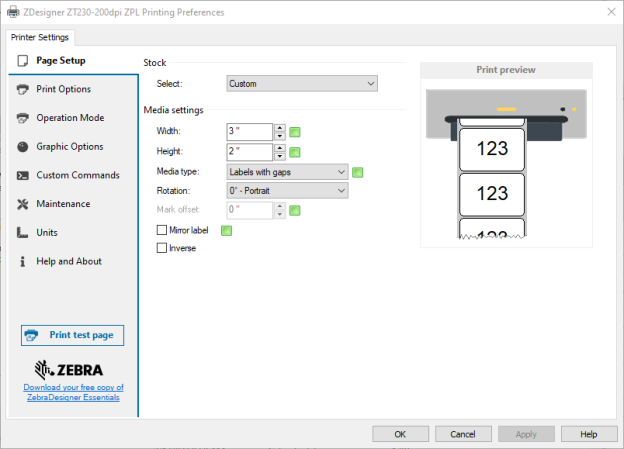

The ZDesigner window for your printer displays.
Change the settings as desired, and then click
OK
.
