Workcloud Communication Profile Manager Administrator Guide

Import Attribute Transformations

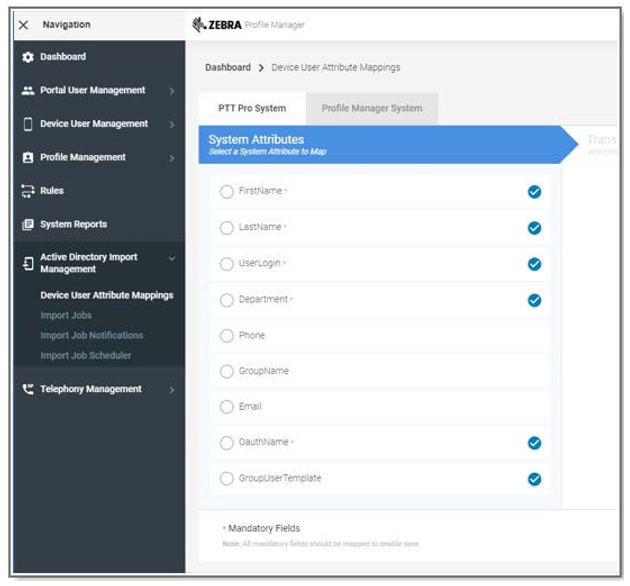

Once familiar with the populated attributes in Profile Manager, navigate to the Active Directory Import Management tab and select Device User Attribute Mappings as shown in Figure 80-Device User Attribute Mappings.

In the center pane, both PTT Pro and Profile Manager Systems are shown. Some of these existing elements are required, indicated by the asterisk. These are the data elements in the PTT Pro and Profile Manager (PFM) solutions that need to be populated when the AD import job is executed, and the transformation is completed.

Device User Attribute Mappings

The table below shows each of the required elements in the PTT Pro and Profile Manager systems.

The idea is to identify an AD attribute for each of the required PTT Pro and Profile manager data elements. The data elements used in this example work for this test environment. AD Attributes used in production can vary dramatically.

Profile Manager Attribute Transformations Mapping
WFC PTT Pro
Element	AD Attribute Name	Value
First Name
Last Name
User Login
Department
OAuthName
Group User Template

Profile Manager
Element
User Name
First name
Last Name
User Role Levels
User Roles
Organization
Department
Force Logout
Authentication Method

In the AD snippet, as an example, the following AD Attributes are used.

Profile Manager Attribute Transformations Mapping with AD Attribute Name
Profile Manager Attribute Transformations Mapping
WFC PTT Pro
Element	AD Attribute Name	Value
First Name	givenname
Last Name	sn
User Login	displayname
Department	department
OAuthName	userprinciplename
Group User Template	title

Profile Manager
Element	AD Attribute Name
User Name	displayname
First name	givenname
Last Name	sn
User Role Levels	employeetype
User Roles	extensionattribute7
Organization	company
Department	department
Force Logout	extensionattribute5
Authentication Method	businesscategory
