Trigger Mapping Modes

Trigger Mapping Modes

The following table outlines the supported modes that can be mapped to the upper or lower trigger of the RFID sled.

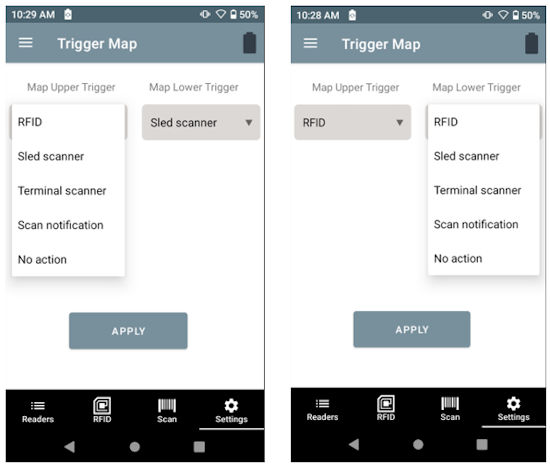

Access Trigger Mapping using 123RFID Mobile from the Settings menu. For additional information, visit zebra.com/123RFID.
Trigger mapping
Mappable Trigger Modes
Condition
Description
RFID Start/Stop
Start and stop RFID decode operations.
Sled Scanner
Barcode decode from the sled.
Terminal Scanner
Barcode decode from the mobile computer. Feature support is determined by the mobile computer being used with the sled.
Scan Notification
Scan trigger press notification.
No Action
No action when the trigger is pressed.
