Adaptor Installation

RFD4031 Ultra-Rugged UHF RFID sleds can be used with various mobile devices by using an adaptor to mount the device onto the sled.

To install the adaptor:

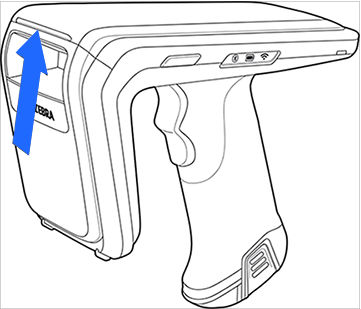

Remove the cover of the sled by pulling up on the lip.

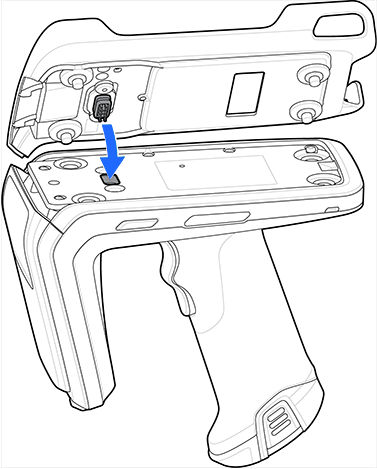

Ensure that the pogo pins are aligned and insert the adaptor into the sled.

When installing the adaptor, use caution and ensure that the pogo pins are lined up directly prior to insertion into the sled.

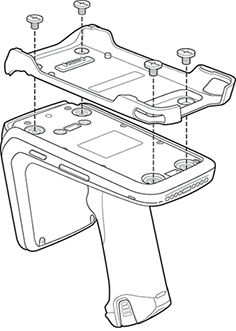

Secure the adaptor onto the RFD4031 by fastening the four coin screws into the sled.
