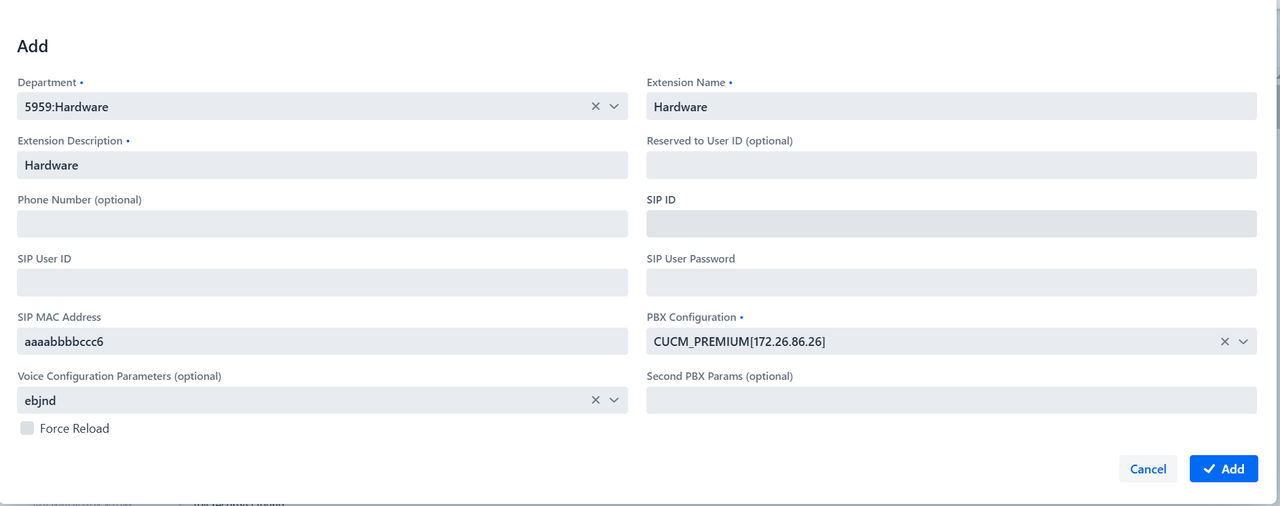

The Name and Description fields are text strings that display in the Zebra Voice Client interface for the user. These fields are required.
Departments are listed in a drop-down menu. Each Extension must be assigned to a department. This field is required.
PBX Configuration lists PBX configurations in a drop-down menu. This field is required.
Reserved for User ID is used for reserved extensions. The user ID entered here must match the UID string in the var_location parameter. The Extension Manager restricts the reservation of multiple extensions in the same department and for the same User ID. If an attempt is made to assign a User ID or Device ID that is already linked to another extension, the system will generate an error message. This message states that “either the User ID or the Device ID is already used and assigned to another extension.”
SIP User ID and SIP User Password are used to authenticate with the PBX. For the Cisco Call Manager, specify the SIP MAC Address.
Voice Configuration Parameters lists configuration profiles in a drop-down menu.
Force Reload allows currently logged-in Zebra Voice clients to forcefully reload the new profile during the next checkpoint.
