Main Screen of Extension Manager User Interface
Main Screen of Extension Manager User Interface

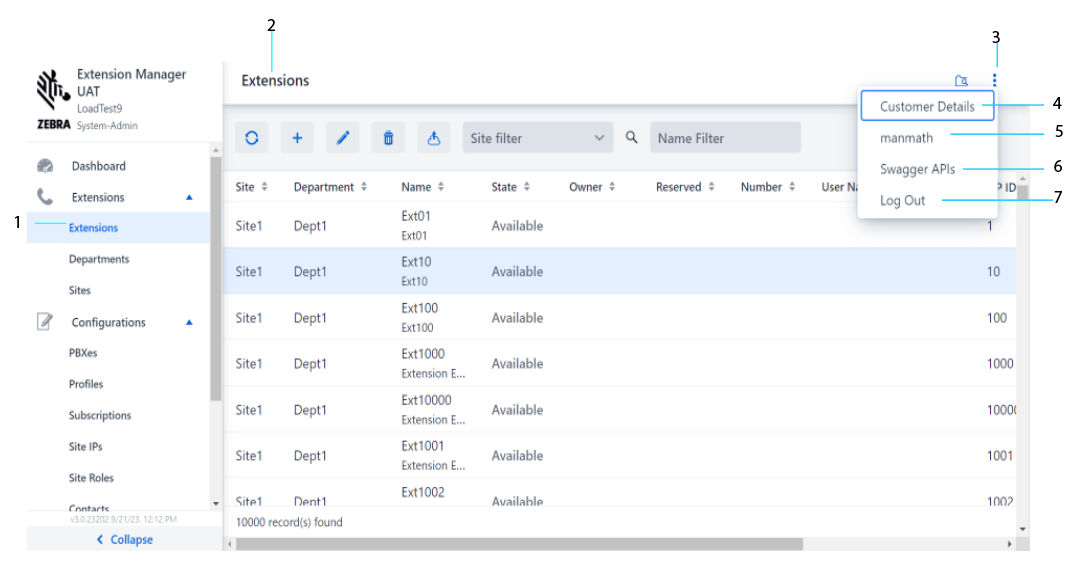

The following is an example of the main screen of the Extension Manager.
Extension Manager Interface
Callout
Description
1
Navigation menu
2
Name of the current menu
3
Show menu.
4
Customer’s details
5
Name of logged-in user
6
Link to the Extension Manager APIs
7
Logs out of the Extension Manager
The navigation menu provides access to the configuration options available through the Extension Manager user interface.
Extensions
Configurations
Reports
Licensing
System
