Manage Site IPs

Manage Site IPs

The Site IPs screen enables the customer administrator to assign a range of IP addresses for use by Zebra Voice clients. Each site can use a distinct range of IP addresses. The customer administrator can use the import/site/ips endpoint to import IP addresses into the Extension Manager.

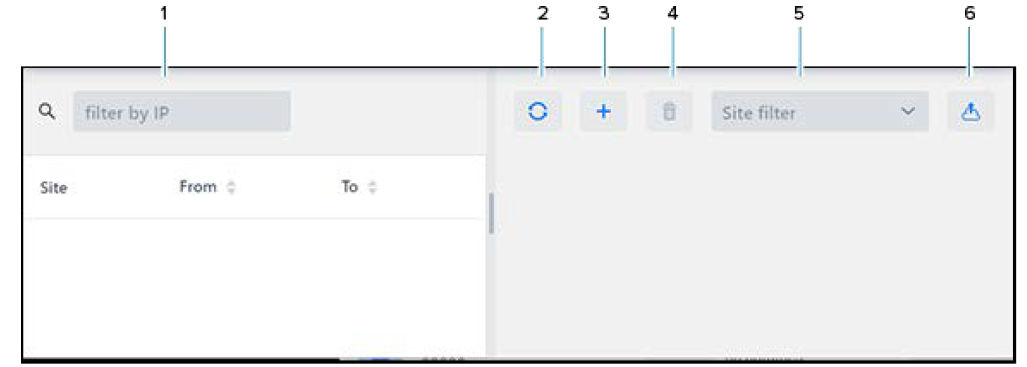

Site IPs Screen
Site IPs Screen
Callout
Description
1
Filter list by IP address.
2
Refresh IP data from the Extension Manager.
3
Add a range of IP addresses to a site.
4
Delete an IP address range from a site.
5
Filter by site identifier.
6
Import CSV file with IP address data. Same CSV format used by the
/import/site/ips
 API endpoint.
See Define Site IPs for an example of site IPs.
