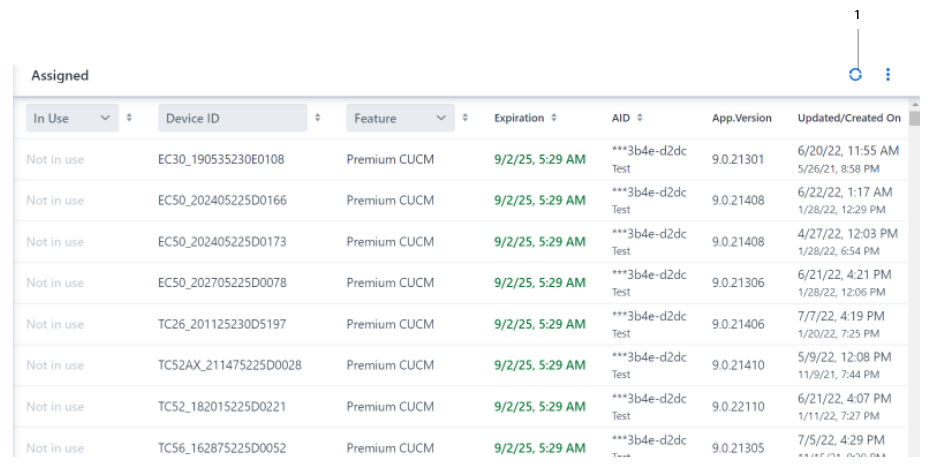

The Assigned screen shows the list of licensed Zebra Voice devices and their licenses. A customer administrator can see which devices are using licenses. If the customer administrator wants to release the licenses from a device, the device must be obsoleted.

To obsolete the device, contact Zebra Global Customer Support for your region specified at: zebra.com/support.

Click

Refresh

to refresh the list to include recently registered devices.

This total does not correspond to the number of unique devices, because devices acquire multiple licenses to enable PBXs.

Callout	Description
1	Refresh licensed device data from the Extension Manager.

Assigned Tab Column Description
Column	Description
In Use
	In Use indicates that the feature license is currently held by the device.
	Not is Use indicates that the feature license is currently not in use. Not in use (*) indicates a premium license not currently in use by a device, but the license is still assigned to the device. This occurs, for example, when a device using a premium license logs out of the Extension Manager. To release the license, the device must be obsoleted.
Device ID	The device holding the license. Note that since Zebra Voice requires a base license and one or more PBX licenses, each device ID appears multiple times.
Feature	PBX using the feature license. This matches the License column except when the Standard license is used. For Standard licenses, the License column indicates Standard and the Feature column indicates the specific PBX requested by the device.
Expiration	The date and time when the license expires.
AID	Activation ID associated with the feature license. Note that this is not used to activate the client.
App Version	Zebra Voice version used by this device is represented by the last part of the version. For example, for version 9.0.20406, only 20406 displays.
Updated/Created on	The top date/time indicates when the device was last in contact with the provisioning Manager. The bottom date/time indicates when the license was first assigned to the device.
