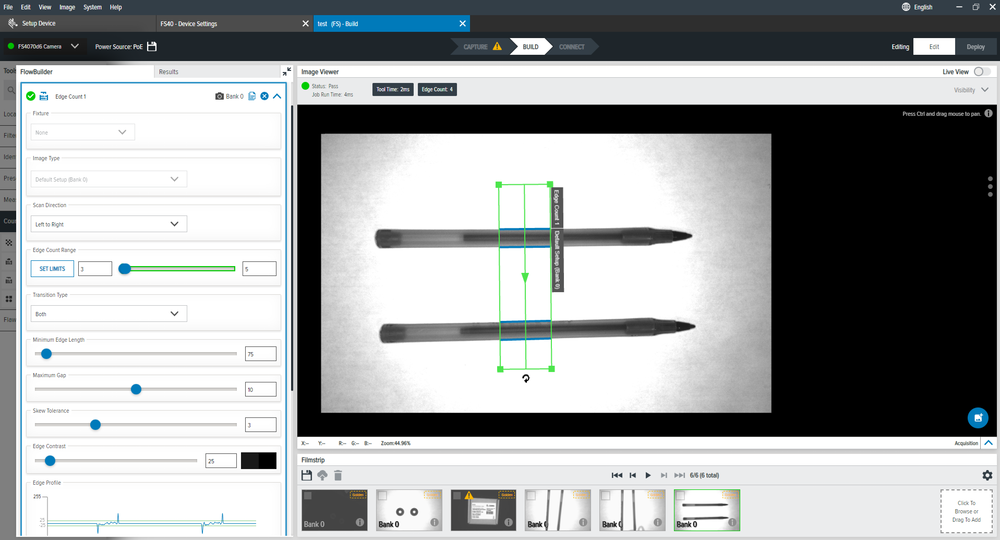

Settings | Description |
|---|---|
Scan Direction | Set the direction that the tool uses when searching for edges.
|
Edge Count Range | |
Transition Type | Select the type of edge transition used to find the circle starting from the center outwards. |
Minimum Edge Length | The minimum length in pixels of an edge to use. |
Maximum Gap | The maximum size in pixels to consider in gaps of the edge. |
Skew Tolerance | The number of degrees to attempt to match the skew of the line if it is not straight. |
Edge Contrast | Threshold acceptance to consider a line. |
Edge Profile | Displays the contrast score of the features across the region of interest. |
