Fixturing in Anomaly Detection

Fixturing in Anomaly Detection

Use fixturing in Anomaly Detection to dynamically control the Region of Interest (ROI) using a fixture from a Locate or Read Barcode tool.
Models created in Aurora Focus 9.3 and above can use fixturing.

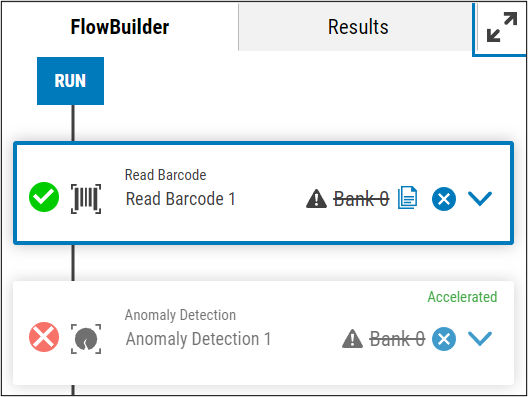

  1. Choose a Locate or
    Read Barcode
     tool and add it to the
    FlowBuilder
    .

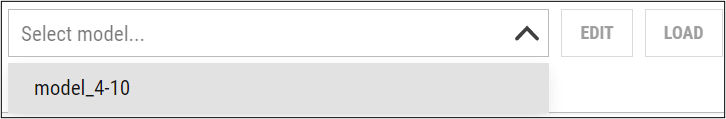

  2. Select a model from the
    Model
     drop-down and click
    Load
    .
    Fixturing is not available until after the model loads.

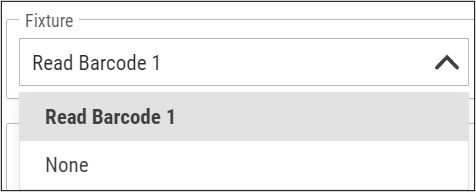

  3. Select a
    Fixture
     from the drop-down and select a fixture source.
  4. Once the fixture is selected, the status indicator changes to Set.
