Saving ImagePerfect+ Images
Saving ImagePerfect+ Images
The smart camera saves only images processed by the decoder.

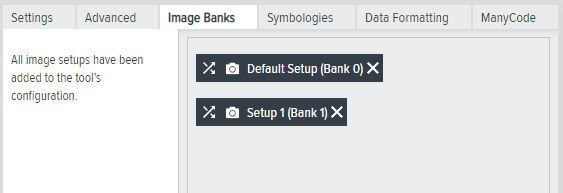

For the FTP to save bank_0 and bank_1, it is important to add both banks while configuring in
Build > Image Banks.
