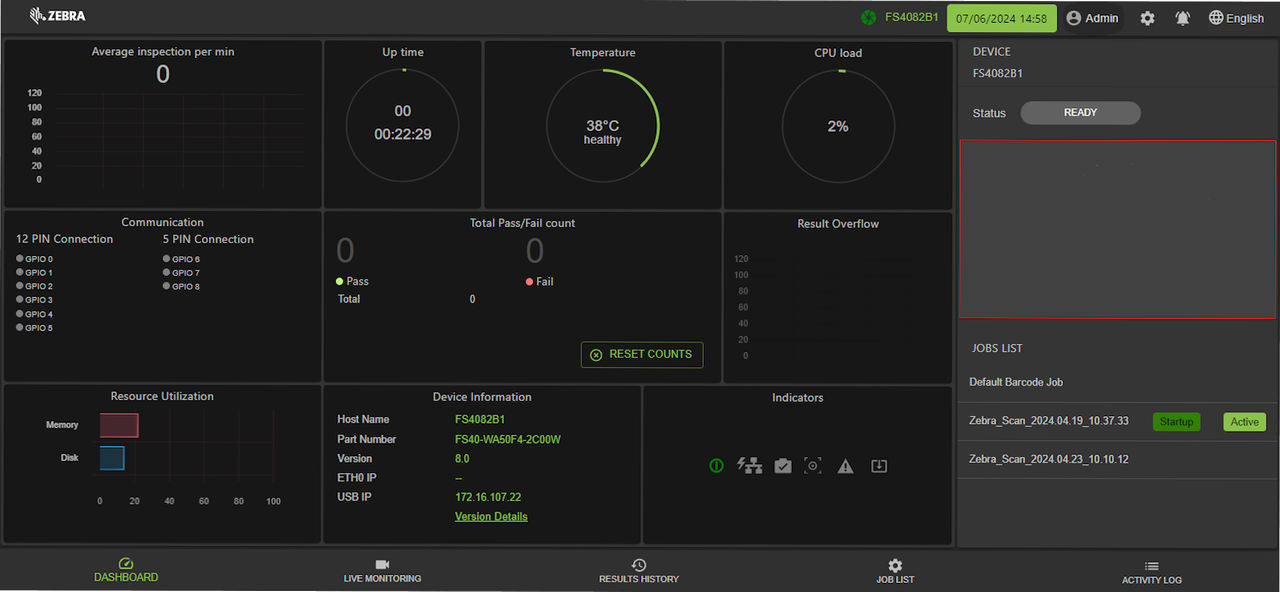

Section | Description |
|---|---|
Average Inspection Per Minute | Displays the number of scans per minute. |
Up Time | Displays the total time the device has been running in a given session. |
Temperature | Displays the operating temperature of the device. |
CPU Load | Displays the current number of processes executed by the CPU. |
Communication | Displays the pinout configuration of the GPIO. |
Total Pass/Fail | Displays the total number of successful and unsuccessful reads. |
Result Overflow | Provides insight into the performance of the setup by displaying the number of results that were not sent out. This could be due to the amount of results data (size/frequency of data) greater than the output interface's throughput. If the system setup is correct, the graph shows 0. If the graph shows an interface greater than 0, an adjustment must be made to preserve the result data. For example, utilize an interface with greater throughput, decrease the amount of output data, or decrease inspection frequency). |
Resource Utilization | Provides resource utilization by memory and disk. |
Device Information | Provides device information such as Host Name, Part Number, Version, Ethernet IP, and Build number. |
Indicators | Power, PoE Network, Device Status, Focus, Warning, Auto Flash, and Firmware Update. |
Status |
Ready - the camera is waiting for a trigger, or there are no active jobs.
Busy - the camera is processing one or more triggers.
Editing - Zebra Aurora Focus is editing a job. |
