Sending Results to a PLC Device

Sending Results to a PLC Device

Use the Connectivity Gateway to send results to the connected PLC device.
  1. Navigate to the
    Admin Settings
     screen from the left menu on the
    Home
     screen and click
    PLC Config
    .
  2. Click
    Results Tag
     on the
    PLC Configuration
     screen.
    send results

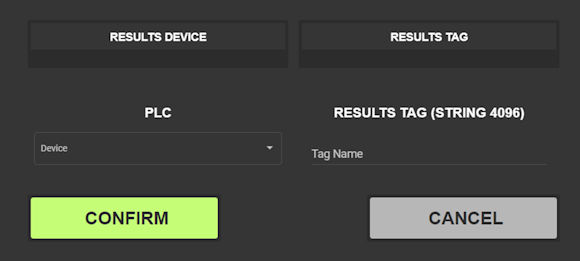

  3. Select the PLC device from the menu and enter a value for the trigger.
    send results to trigger
  4. On the
    PLC Configuration
     screen, toggle
    Output via PLC
     to
    On
     (green).
    output to PLC
    The results tag supports a string of up to 4096 characters, including the CR+LF terminator.
  5. After the configuration is complete, navigate to the
    Control PLC
     screen, select the PLC device from the menu, and click
    Start
     to begin sending results.
