Enabling Telnet Connections
Enabling Telnet Connections
Use a Telnet connection with a PC-based terminal over ZETI with a device.
Press Win + R to open Run.
Search for the Control Panel and click
OK
Search for the Control Panel and click
Programs and Features
Using the left panel, click
Turn Windows Features On or Off
Enable telnet client Windows features dialog.
In the Windows Features dialog, scroll down and select
Telnet Client
.

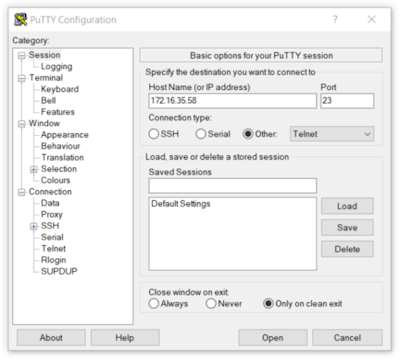

You can also use a terminal client such as Teraterm or Putty. The following image displays the procedure using Putty.

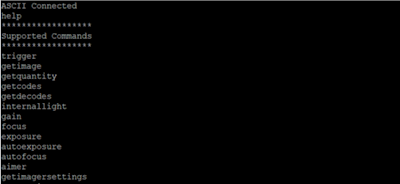

After opening the session, type the command name and press
Enter
.
