Setting | Description |
|---|---|

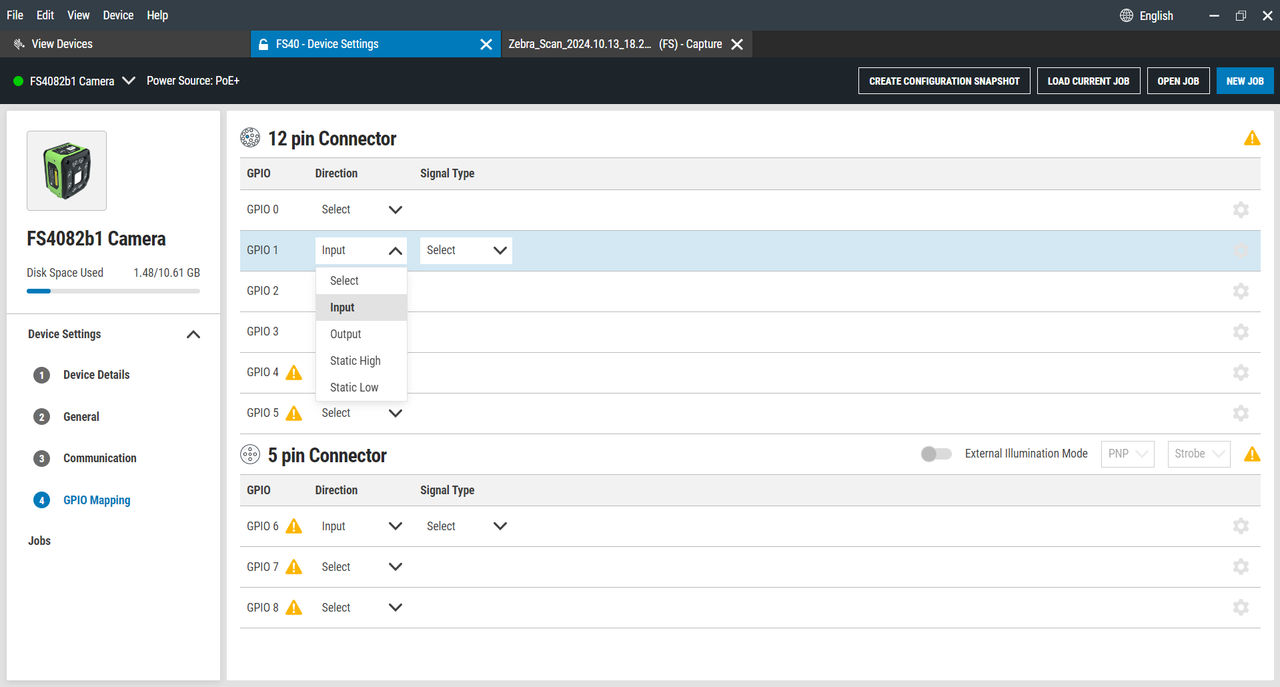

Direction | Configure the input signals coming into the device, or the output signals sent out.
Select the GPIO port configuration: Input, Output, Static High, and Static Low.
Static High sources the current for an external load. Static Low sinks the current for an external load.
|
Signal Type | Configure the Signal Type: Normal or Hardware Trigger.
Normal Trigger - signal is routed through the device software. Normal Trigger is useful for Continuous, Level, periodic, Presentation, and Burst modes.
Hardware Trigger - signal is routed through the device hardware directly to the sensor, bypassing the processing of the trigger. Hardware Trigger is more responsive and useful for Single Trigger use cases.
|
Advanced Settings | Use Input to configure Input Debounce and Input Delay.
Use Output to configure Pulse Width and Output Delay.
|
External Illumination Mode | Toggle this setting to automatically configure the pins in this port to power and control external illumination.
|
