General Settings

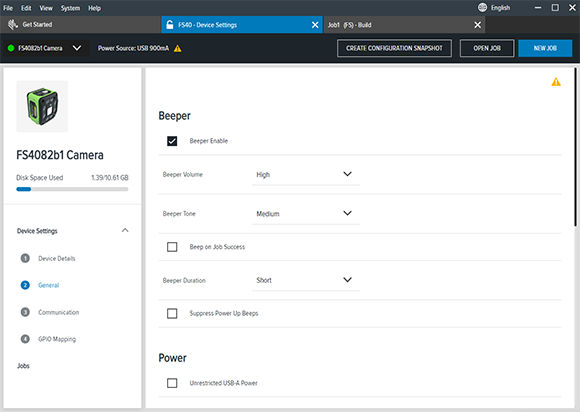

Configure the beeper, power, and LED settings using the

General Settings

tab. Beeper settings can be set to turn on or off, and the beep's volume, tone, and duration can be configured to fit the needs of a specific use case.

If you are configuring the FS42 (5MP) with the Zebra Integrated Multifunction Light (ZIML), ensure you emit light from only one source at a time. For example, if you use the aimer on one device, disable it on the other. Beepers, LEDs, illumination sources, and aimers are all features that are mutually exclusive and must be configured on each device individually.

General Settings
Setting	Description
Beeper
Beeper Enable	Enable the beeper sound on the device.
Beeper Volume	Configure the volume of the beeper. High Medium Low Off
Beeper Tone	Configure the tone of the beeper. High Medium Low Off
Beep on Job Success	When enabled, the device beeps upon successful completion of a job.
Beeper Duration	Configure the tone of the beeper. Short Medium Long
Suppress Power-Up Beeps	When enabled, the warble beep sequence that sounds during device start-up plays at a reduced volume.
Power
Unrestricted USB-A Power	When enabled, the device receives unrestricted power from a USB-A power source. This is required to enable full-power internal lighting.
Hardware Buttons
Tune Button Enable	Enable or disable the Tune button on the device.
Trigger Button Enable	Enable or disable the Trigger button on the device.
Configuration Barcodes
Enable Parameter Barcodes	When enabled, the device configuration can be changed using a barcode.
Timeout	Configure the maximum time (ms) to attempt to generate the barcode before a timeout occurs.
Zebra Integrated Multifunction Light (ZIML) Settings
Enable ZIML	Slide the toggle to enable the light and select the light model (Full-Featured or Standard Model) from drop-down. Configurable settings depend on the model.
Enable Laser Aimer	Click the checkbox to enable the laser aimer.
Beeper	Click the checkbox to enable the 360 LED status indicators. Beeper Volume (Default: High) Beeper Tone (Default: Medium) Beeper Duration (Default: Long)
ZIML 360 LED Status Indicators	Click the checkbox to enable the 360 LED status indicators. Click the checkbox to hold the indicators until the next trigger. Configure the number of flashes (Default: 1). Configure the amount of time (ms) the indicator illuminates per flash (Default: 50 ms).
ZIML Power Mode	Select Low Power or High Power.
360° LED
Number of Flashes	Use the slider to configure the number of flashes the LED illuminates upon decode.
Time per Flash	Use the slider to configure the amount of time (ms) the LED illuminates per flash (Default: 50 ms) per decode.
Configure Logging
Logging Options	Select Basic or All to enable logging and generate files that provide additional information on job runs. Use the Web HMI to download the log files from the device.
Continuous Acquisition Image Saving
Continuous Acquisition Image Saving Debug Mode	When enabled, debug mode for Continuous Level and Presentation Trigger modes saves all images acquired during Continuous Trigger mode up to the maximum image saved threshold (the default is 100). The saved images provide insight into the frames acquired during a trigger session that did not result in a Pass. This mode differs from the standard No Read Image save functionality, which does not save No Read images during continuous image acquisition.
Maximum Images Saved	Define the maximum number of images saved during a continuous acquisition session. New sessions are started when switching jobs; jobs start after a device reboot and changes from Edit mode to Deploy mode.
New Sessions Clear Old Debug Images	Delete all previously saved images when a new session starts. This option is helpful to ensure all debug images are examined in the same session.
