Automation Wedge transmits data captured by the smart camera to an application running on a Zebra mobile computer. Use Automation Wedge to enhance productivity by streamlining the process of collecting and utilizing data from physical sources.
Navigate to the
Communication
section in
Device Settings
.

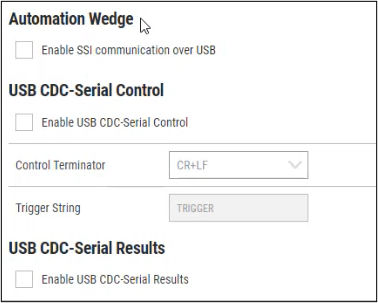

Click
Enable SSI communication over USB
in the USB settings section.
SSI mode can only be enabled if HID results, CDC results and CDC Control options are disabled.

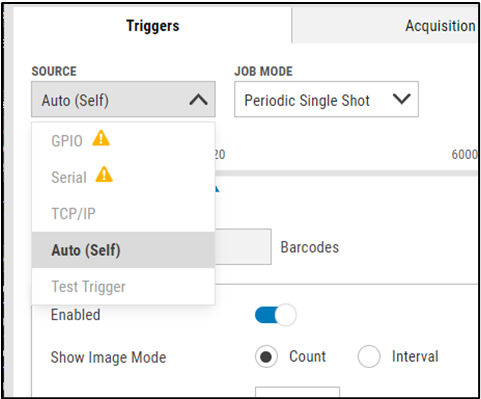

Navigate to job settings and configure.
Source
and
Job Mode
settings from the drop-down menu on the
Triggers
tab.

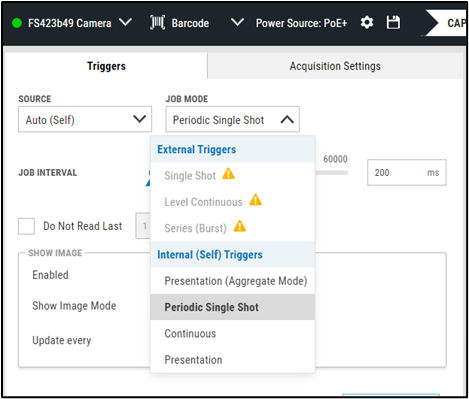

Only auto modes are supported in job settings when SSI mode is enabled. The job starts when the device receives the enable command.
Supported Trigger Sources: Auto/Self
Supported Trigger Modes: Presentation, Continuous and Periodic Single Shot

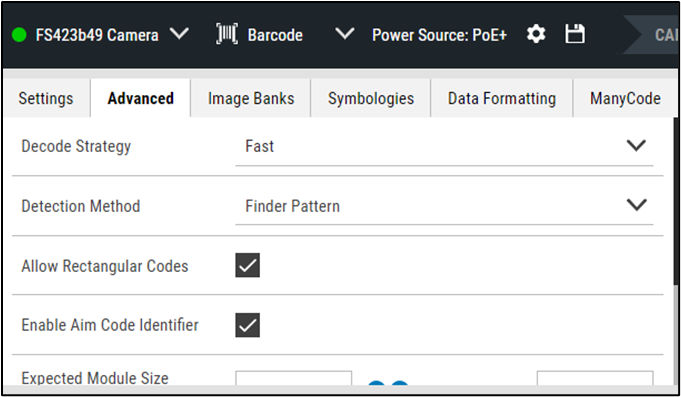

Ensure that
Aim Code Identifier
is enabled when creating a new job in SSI mode.
An Aim Code Identifier is required for decoded data to be transmitted correctly. If it is not enabled, the first three characters may get removed from the barcode data sent to the device.
