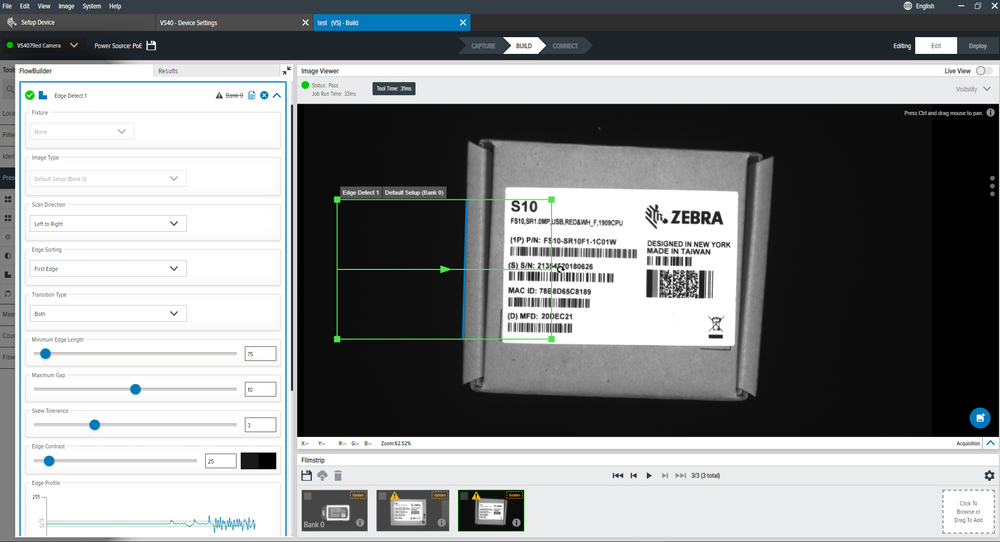

Settings | Description |
|---|---|
Fixture | Select a previous locate tool result to position this tool's Region of Interest (ROI). |
Image Type | Select which image type this tool uses. |
Scan Direction | Set the direction that the tool uses when searching for edges. |
Edge Sorting | Refine a collection of found edges to a single best edge. |
Transition Type | Select the type of edge transition used to find the edges. |
Minimum Edge Length | The minimum length in pixels of an edge to use. |
Maximum Gap | The maximum size in pixels to consider in gaps of the edge. |
Skew Tolerance | Degrees to attempt to match the skew of the line if it is not straight. |
Edge Contrast | Threshold acceptance to consider a line. |
Edge Profile | Displays the contrast score of the features across the Region of Interest (ROI). |
