GPIO Pass/Fail
GPIO Pass/Fail
Use the HMI to configure GPIO Pass/Fail on an output pin of your choice.
Determine which output to use for Pass/Fail. The output triggers followers and cannot be used to output scanning results.

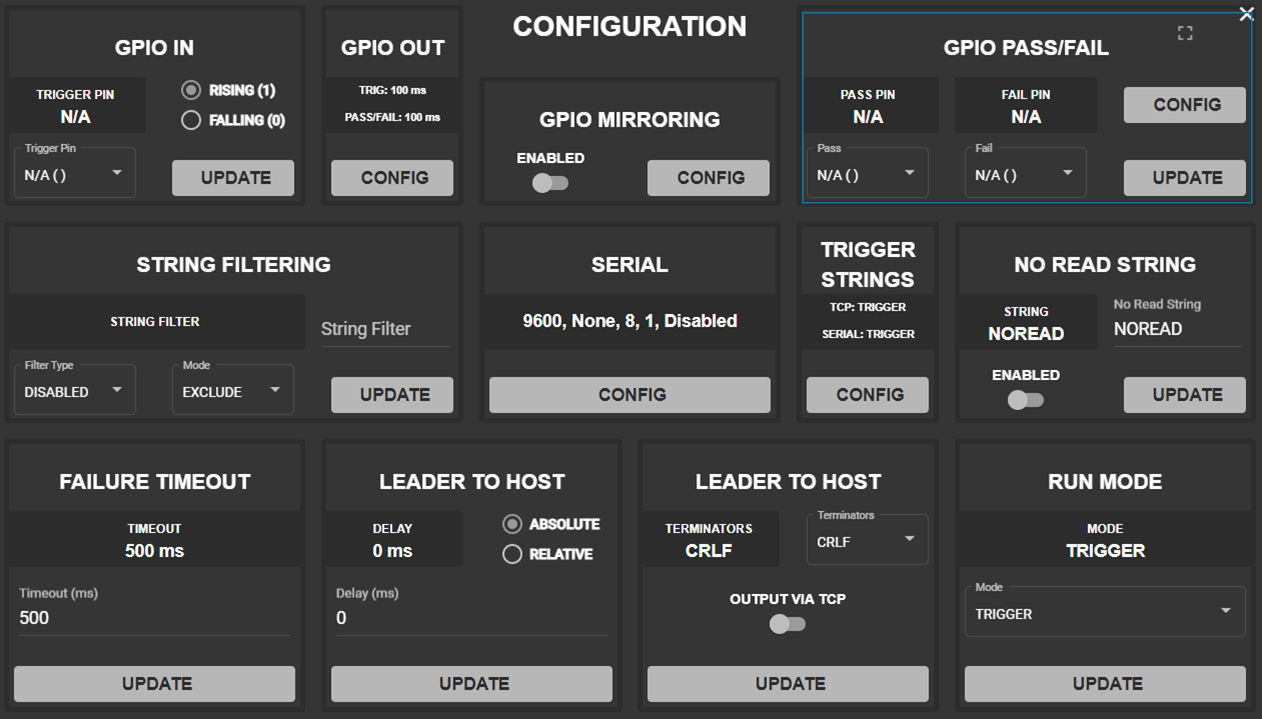

Navigate to the
Configuration
screen using the left menu on the
Home
screen.
Use the top-right
GPIO Pass/Fail
section to select Pass and Fail pins from the drop-down menu.
Set the toggle to
Enabled
and click
Update
.
