Measure Object Width

The tool performs a series of scans along Scan Count parallel scan segments constructed from Measure Object Width Region of Interest (ROI). The obtained points are then used for computing two parallel segments using a slightly modified segment-fitting routine. The Outlier Suppression parameter supports the process. Finally, the stripe widths and fitted segments' direction compute the object width.

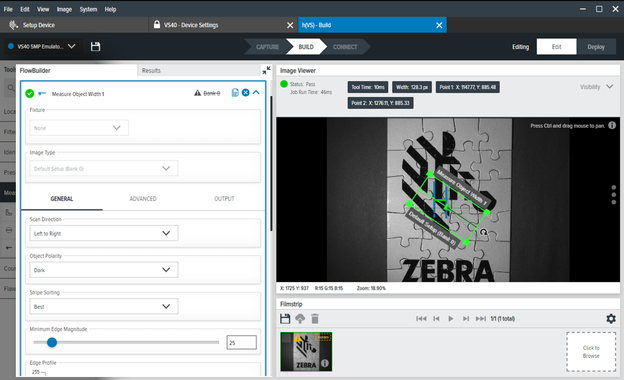

Measure Object Width Settings

Setting	Description
Scan Direction	Set the direction that the tool uses when searching for edges.
Object Polarity	Determine the contrast type for the target object.
Stripe Sorting	Determine the mode of selection for the edges of the object.
Minimum Edge Magnitude	Set the minimum contrast value used to define object edges.
Edge Profile	Displays the contrast score of the features across the Region of Interest (ROI).
Distance Limit	Configure the minimum and maximum distance values.
Scale Calibration	Calibrate scale values to engineering units.
