PLC Configuration
PLC Configuration
Create a PLC device to connect to the Connectivity Gateway.
Select
PLC Config
from the
Admin Settings
menu.
Select
Create PLC
from the
PLC Configuration
menu.

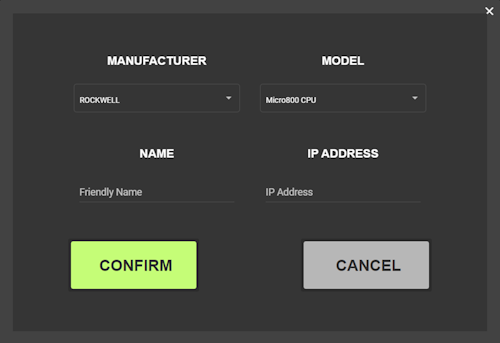

On the Create PLC screen, select the
Manufacturer
and
Model
of the PLC, specify a
Friendly Name
for the PLC, and enter the
IP Address
.
Click
Confirm
and observe the confirmation message.
