Attributes
Attributes

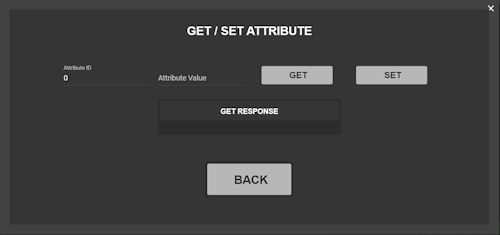

Provide the Attribute ID or value to set or retrieve the response.
Access
Attributes
from the
Admin Settings
screen.
Enter the
Attribute ID
and
Attribute Value
and click
Get
or
Set
to retrieve the response.
Administrator Settings
