Advanced Filtering and Formatting

Advanced Filtering and Formatting

The following functionalities are not supported in Aurora Focus:
  • Non-standard, customer-specific check digit calculations
  • Location based Pattern Match requirements based on barcode positional dependencies such as Code 128 is on the left of a UPC
  • Interjection of time delays between transmitted barcode data
  • Non-ASCII values
To configure Advanced Filtering and Formatting settings in Aurora Focus:

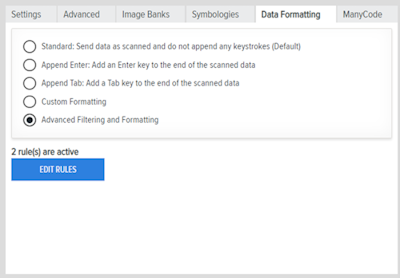

  1. Select the
    Data Formatting
    tab to access
    Advanced Filtering and Formatting
    .
  2. Select the
    Advanced Filtering and Formatting
    radio button.
  3. Click
    Edit Rules
    to create a new rule or edit an existing rule. Rename the rule if necessary.
    aurora focus advanced formatting

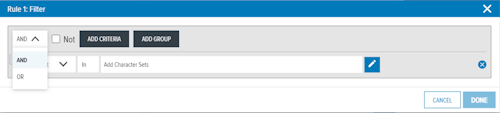

  4. To add a
    Filter
    , click
    Edit
    and select an
    And
    or
    Or
    operation from the drop-down menu, or select the
    Not
    checkbox to invert the result.
    aurora focus advanced formatting add filter

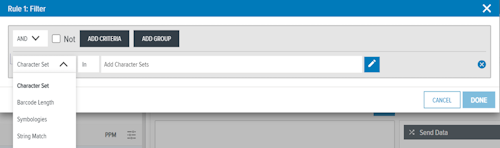

    1. Click
      Add Criteria
      to add a condition to the rule from the drop-down menu.
      aurora focus advanced formatting add criteria

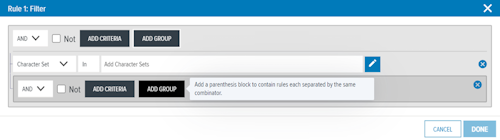

    2. Click
      Add Group
      to add a parenthesis block that contains rules separated by the same combinator.
      aurora focus advanced formatting add group
  5. To add an
    Action
    , click
    Add
    .
    1. Select a type of
      Action
      (send, move, remove, or individual).
    2. Click to specify an
      Action
      to add to the list of selected actions by clicking the plus sign.
      aurora focus advanced formatting send the function key

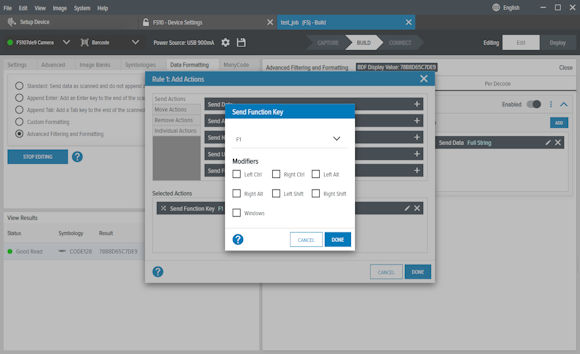

    3. Use
      Send Function Key
      to configure which function key to send as the keystroke for the HID output interface. The range of keys is from F1 to F24. Add modifiers when applicable, including Left Ctrl, Right Ctrl, Left Alt, Right Alt, Left Shift, Right Shift, and Windows.
      aurora focus advanced formatting send the function key
    4. Edit the action by clicking
      Edit
      on the selected action.
      aurora focus advanced formatting edit the action

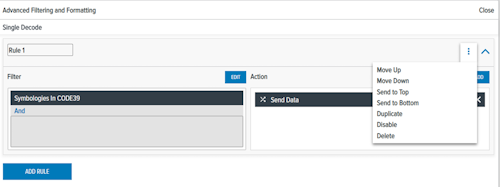

  6. After a
    Filter
    and
    Action
    are identified for the rule, and rules are managed by clicking the ellipses.
    aurora focus advanced formatting manage rules
