Creating a Model

Creating a Model

The Anomaly Detection tool in Aurora Focus uses the Aurora Deep Learning Editor.

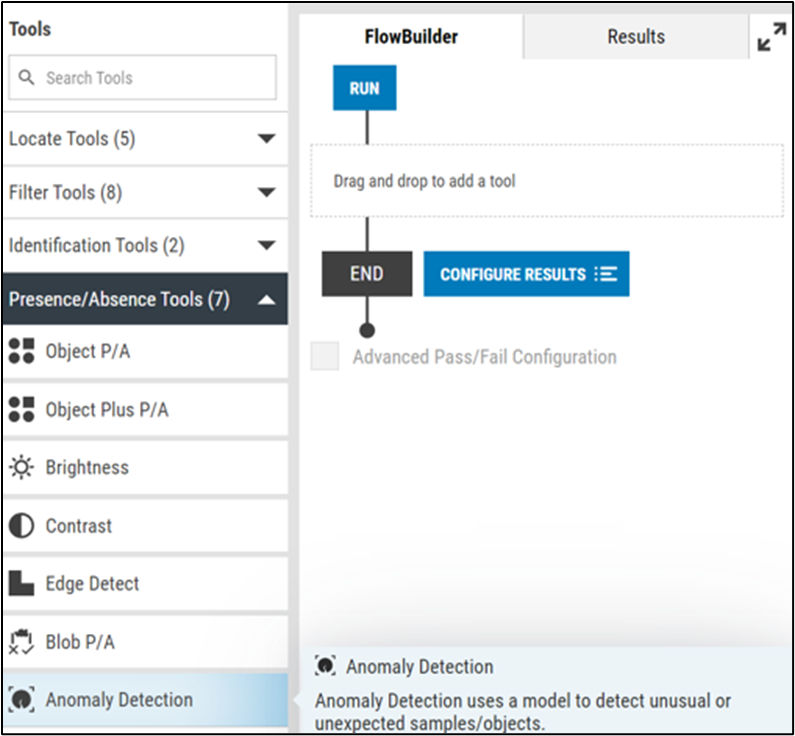

  1. Add the
    Anomaly Detection
     tool from
    Presence/Absence
     tools list.
  2. Click
    Create Model
     to use an existing model or create a new one.

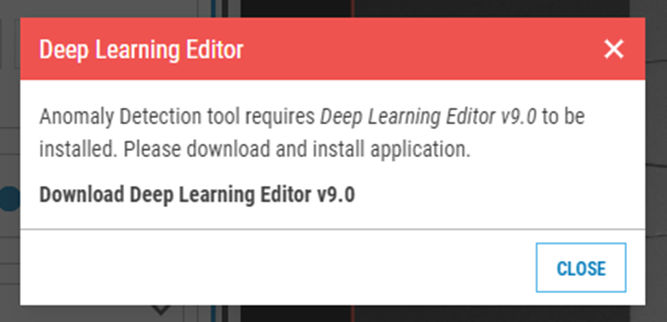

    Anomaly Detection requires the latest version of Aurora Deep Learning Editor. To download the latest version, open Zebra Aurora Focus while connected to an FS42 or NS42 device or emulator and add the Anomaly Detection tool. The dialog box provides a direct link to download the latest version of Deep Learning Editor.
    deep learning editor pop up

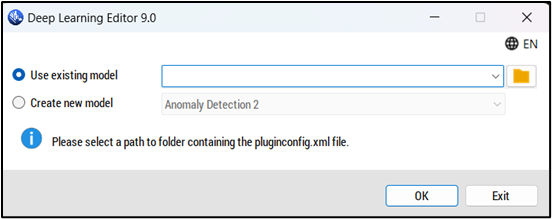

  3. If you are using an existing model, click and navigate to the location of the model on your PC and click the folder icon.

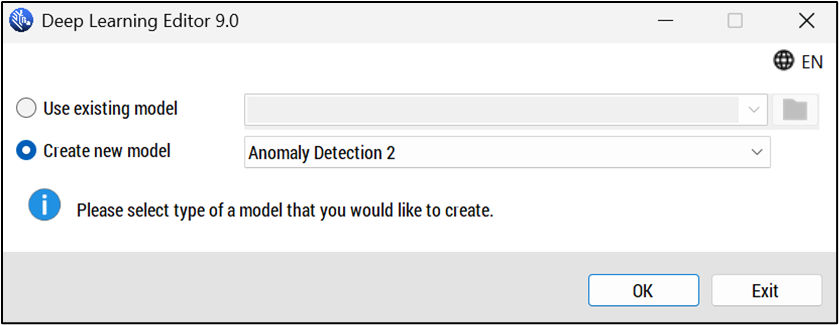

  4. If you are creating a new model, select the model type from the dropdown and click OK.

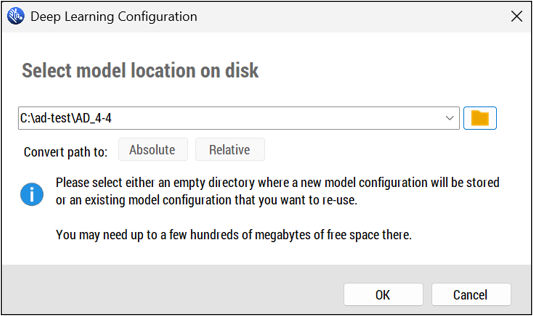

    1. Click to select a location for the model on your PC.
Model editing is done in Deep Learning Editor.
