Editing and Deploying Models in Aurora Focus

Editing and Deploying Models in Aurora Focus

Load an existing model in Aurora Focus to edit and deploy on a set of images.

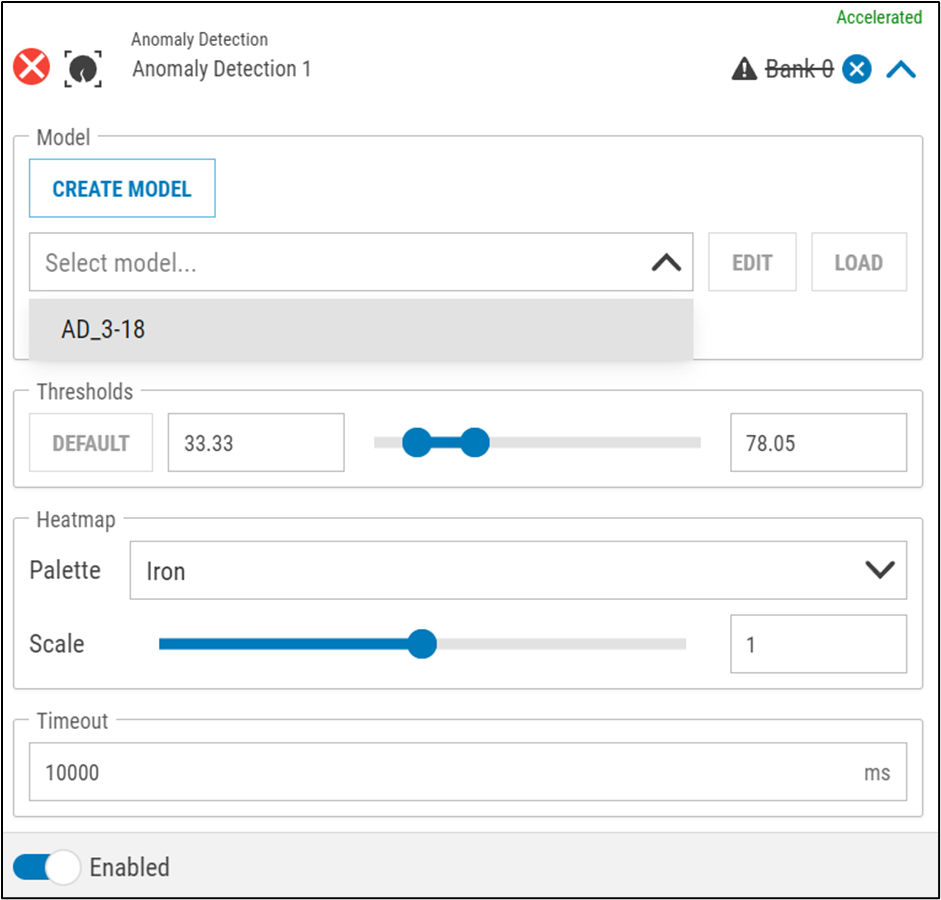

  1. Select the model from the drop-down menu.
    1. Click
      Load
       to deploy the model on a set of images in Aurora Focus.
    2. Click
      Edit
       to edit the model in Deep Learning Editor.
  2. Configure the model settings as necessary:
    • The Pass and Fail state of the tool is defined by the Threshold T (mid-point of T1 & T2), which is defined in the Deep Learning Editor. For additional information on thresholds, go to Understanding Thresholds
    • Heatmap - change the visualization settings of the heatmap that appears when reviewing results.
