GPIO Mirroring

GPIO Mirroring

Use the HMI to turn GPIO Mirroring on or off and inverse the mirroring to allow Input 0 and Input 1 to mirror to Out1 and Out0.
  • Enabled GPIO Mirroring: the output signal goes high whenever the input pin that it is mirroring goes high.
  • Disabled GPIO Mirroring: the output signal goes high for its predefined pulse width and then goes low immediately after.
  • Enabling Opposite pins: input 0 mirrors Out0, and Input1 is mirrored to Out1 by default. Enabling opposite inverses the mirroring to allow Input0 and Input1 to mirror Out1 and Out0, respectively.
  1. Navigate to the
    Configuration
     screen using the left menu on the
    Home
     screen.

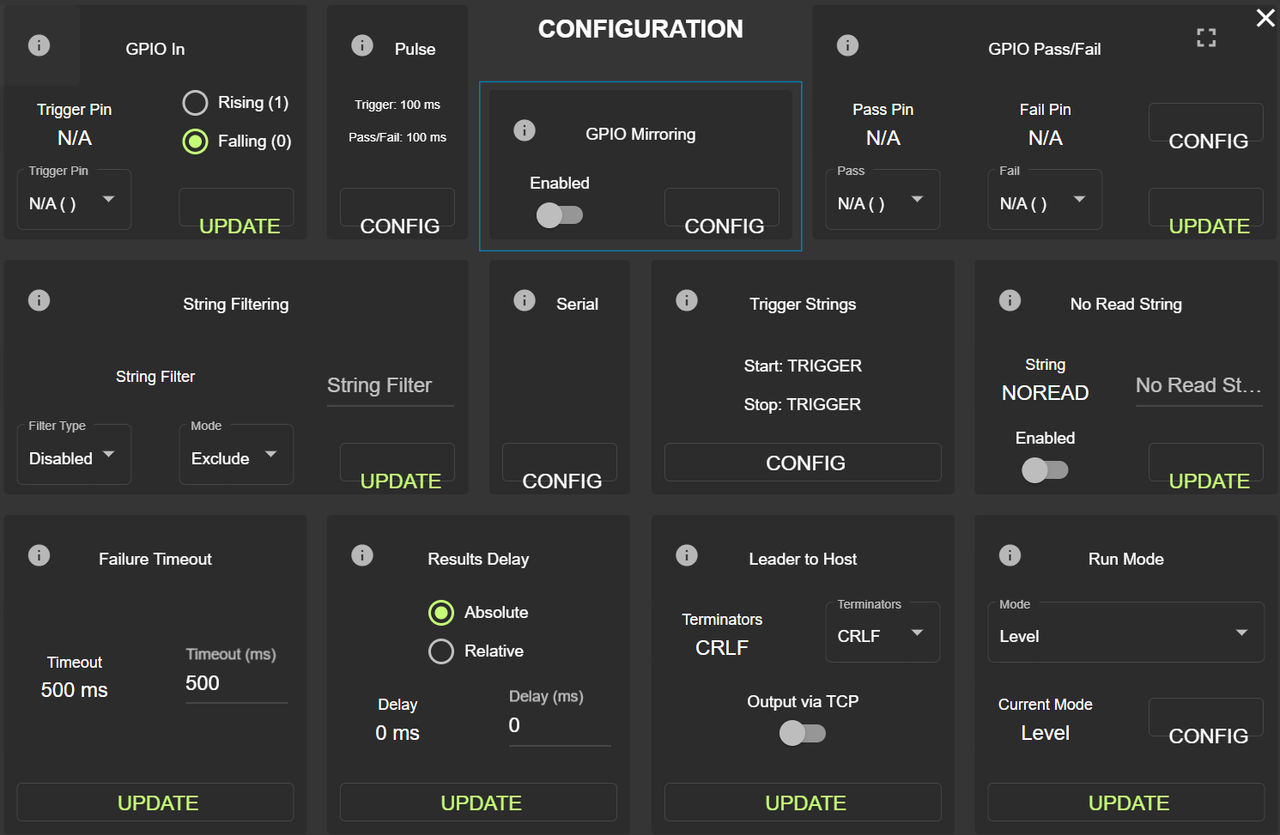

  2. Locate the
    GPIO Mirroring
     section and toggle
    GPIO Mirroring
     to enable.
    enable gpio mapping
  3. Click
    Config
     and select an
    Input Pin
     and an
    Output Pin
     from drop-down.
  4. Click
    Update
     to apply the changes.
