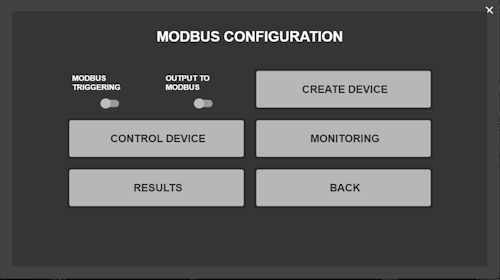

Modbus Configuration

Navigate to the

Admin Settings

menu from the

Home

screen and click

Modbus Config

.

Slide the toggle to the right to enable

Modbus Triggering

or

Output to Modbus

.

Click

Control Device

to access controls to the Modbus device.

Select the Modbus device from the menu and click

Start

to begin controlling the device. Click

Stop

to end the session or

Delete

to remove the device. When you are finished controlling the device, click

Back

to return to the

Admin Settings

menu.

Click

Results

to access Modbus results and configure where results are sent to.

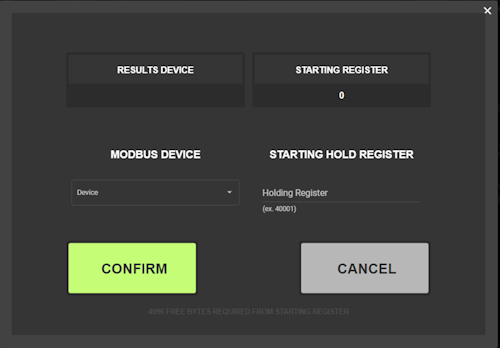

Select the Modbus device from the menu and define a

Holding Register

.

Click

Confirm

to save changes and return to the

Admin Settings

menu.

Click

Create Device

to configure the device information.

Provide the required device information and click

Create

to return to the

Admin Settings

menu.

Click

Monitoring

to monitor a specific coil on the Modbus device

Select a Modbus device from the menu and determine a coil number to monitor.
