Using Undo/Redo
Using Undo/Redo

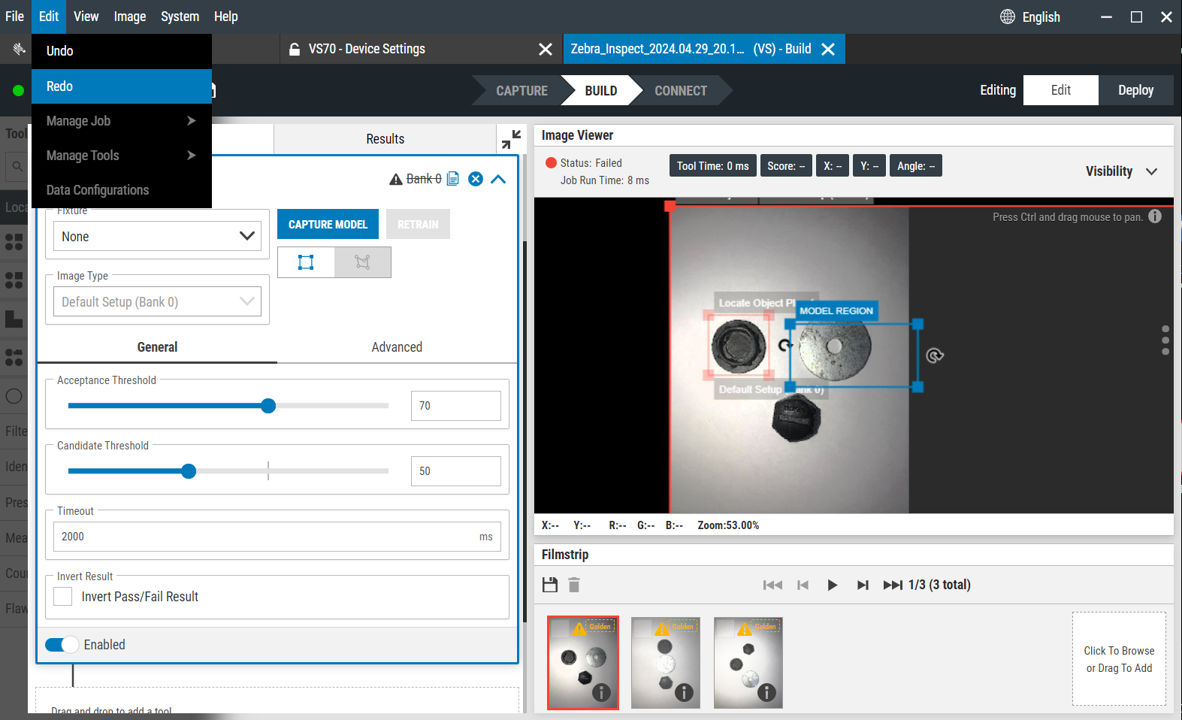

Use Undo or Redo to go back to the previous step in a job deployment or configuration.
Click
Edit
from the top menu and select
Undo
or
Redo
to revert back or forward while building a job.
