Using Accelerated Tools

Using Accelerated Tools

Deep Learning OCR and Anomaly Detection tools can be accelerated to speed up a specified tool during job execution and reduce overall tool time.
Acceleration is available on FS42 and NS42 devices only.

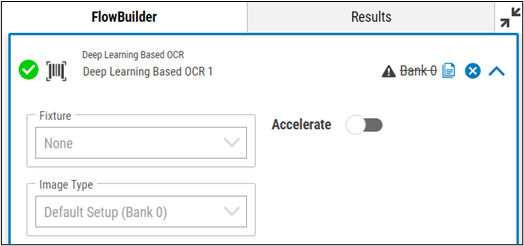

  1. Enable acceleration by sliding the
    Accelerate
     toggle to the right.
    dl ocr accelerate
    In this mode, the Region of Interest (ROI) can be moved or rotated but not resized. Tool settings
    Average Character Height
     and
    Character Width Scale %
     are not editable while in Accelerate mode. Move the slider to the left to disable Accelerated mode and edit tool settings.
  2. After
    Accelerate
     is enabled, the
    Optimization
     overlay displays, and all settings are blocked and transferred to the device.
    optimization notification
    For optimal performance, jobs should contain only one accelerated tool. Jobs containing more than one accelerated tool can negatively impact performance and increase execution time.

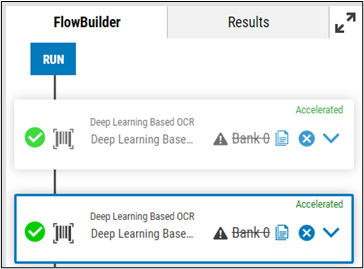

  3. All accelerated tools are marked on the
    FlowBuilder
     by the green
    Accelerated
     indication.
    dl ocr flowbuilder accelerated tools
    If a job is saved with the
    Accelerate
     setting enabled and later opened on a device that does not support this setting, it is automatically switched back to its standard state without acceleration.
