Applying a Simplified FTP Folder Structure

Applying a Simplified FTP Folder Structure

If the default folder structure is not necessary, disable the default folder structure and apply a simplified structure.

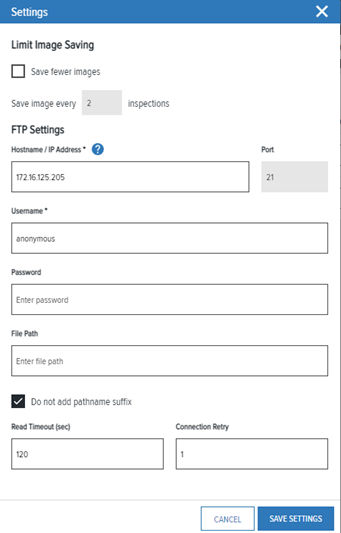

  1. Enable
    Do not add pathname suffix
     in the
    Settings
     dialog for the FTP connection.

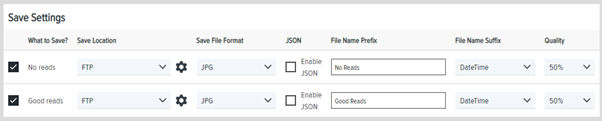

  2. To save pass or fail images only and avoid the JSON file, use the
    Connect
      chevron and deselect the
    Enable JSON
     checkbox.

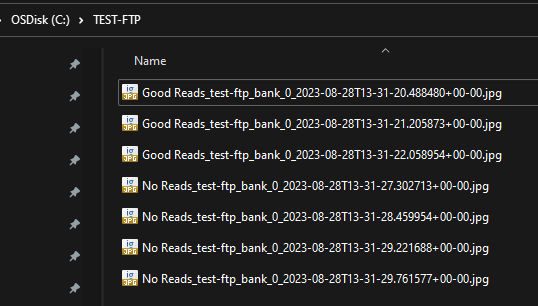

The following figure displays the resulting folder content. Use File Name Prefix to separate Good Reads from No Reads without using the folder structure.
