tab generates barcodes using a device configuration snapshot. Use an existing configuration snapshot or select the currently managed device setup to deploy to multiple cameras.
Configuration barcodes are generated and applied to fixed scanners (FS) only. Vision scanners (VS) cannot generate or apply configuration barcodes.

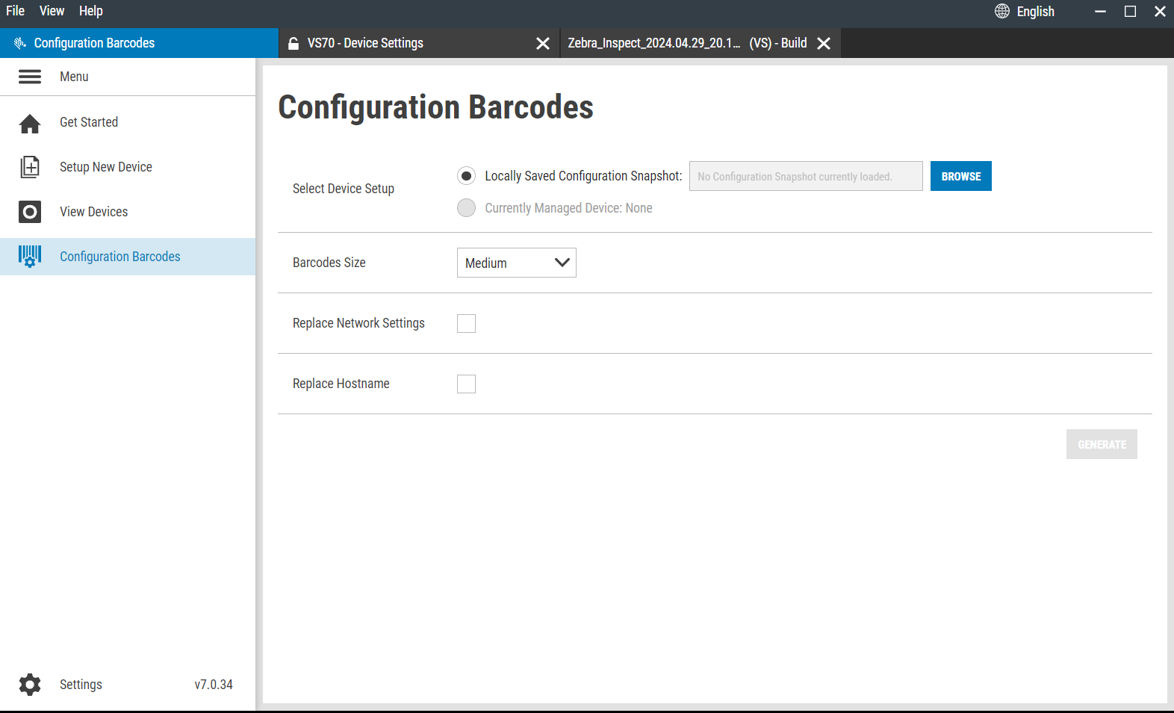

Navigate to the
Configuration Barcodes
tab.
Select a
Device Setup
to create a snapshot from the current managed device or load one from the PC.
If the device is not managed, you cannot select a setup from the device. Status is indicated next to the
Currently Managed Device
option.
To create a saved configuration snapshot of a connected device, click
Create Configuration Snapshot
in
Devices Details.
Configure the size of the barcode being exported. The options are Small, Medium, or Large. The default size is Medium.
Enable
Replace Network Settings
to replace the network settings from the configuration file with the network settings of the new device that the configuration is being deployed onto.
Enable
Replace Hostname
to replace the hostname in the configuration file with the hostname of the new device that the configuration is being deployed onto.
