If you are using a USB or Ethernet cable directly connected from the device to your laptop, the device cannot leverage the host-laptop internet connection without manual bridging/sharing of internet connection across adaptors. For more information, go to the Bridging an internet Connection to FS/VS Devices section.

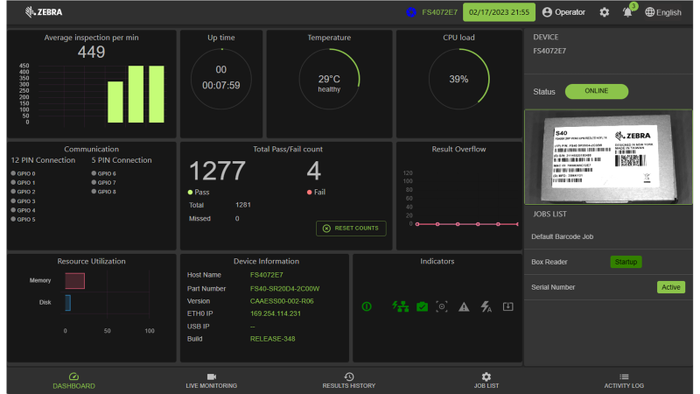

Open the Zebra Web HMI by entering the device's IP address into a web browser or clicking the IP address link under
View Devices
in Zebra Aurora Focus.
Log in to the HMI using the default credentials for an administrator account:
to acquire the license. Available Licenses contain the following information:
License Index: Lists the license number
License Name: This is the license's feature name, for example, xS-feature-vspkg.
License Version: Lists the license version number.
Expiration Date: Expiration date for the trial license. For a Perpetual license, this field shows permanently.
License Count: Lists the number of licenses allocated to the device.
Host ID: A unique number for the license server to identify the device. This number has both the devices' Part Number and Serial number. The example shown below is VS40-WA50P4-2100W_12345678901234.
Release: Click
Discard
to release the license back to the device's license server.
