Enabling the Activation ID
Enabling the Activation ID
The Activation ID is the unique 32-bit alpha-numeric number provided when the license is procured.
This number acts as the key to enable the device to activate a license. An example of the Activation ID is
xssn-ixa3-tdgb-elsi-mxd8-q6kq-cw50-20bp
.

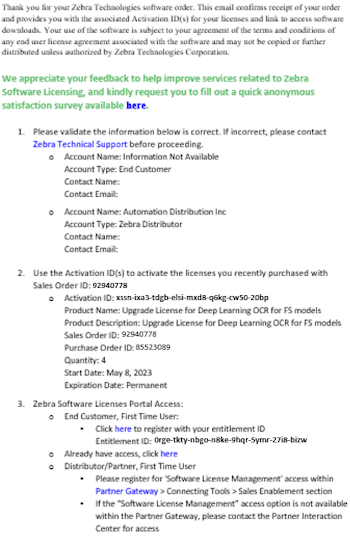

Entitlement Email
Refer to the link shared in the confirmation e-mail when the license is procured for credentials.
Upgrading a FS/VS Tools License
