Leader Device Information
Leader Device Information
View device information such as the Model Name, Regulatory Name, Part Number, Serial Number, Build, and Version.
Access
Leader Info
from the
Admin Settings
menu.

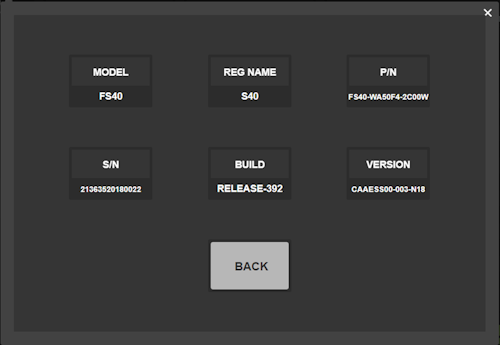

View the Model Name, Regulatory Name, Part Number, Serial Number, Build, and Version of the device.
Administrator Settings
