Restart Runtime
Restart Runtime
Use the Connectivity Gateway to restart the runtime of the device.
Access
Restart Runtime
from the

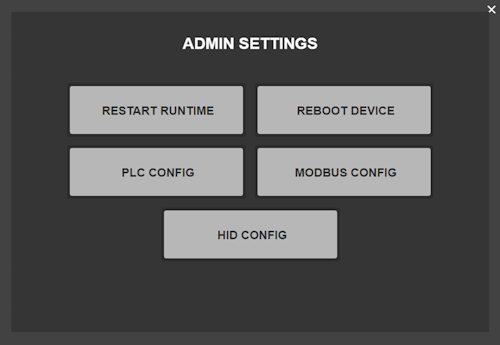

Admin Settings
menu.
Click

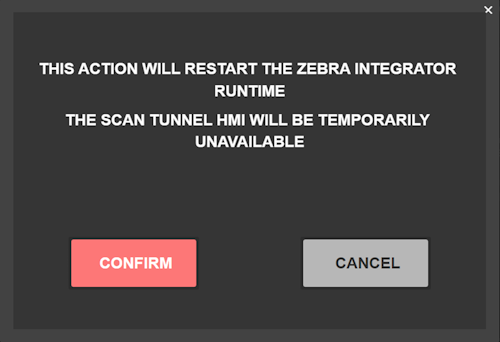

Confirm
to restart the runtime of the device.
